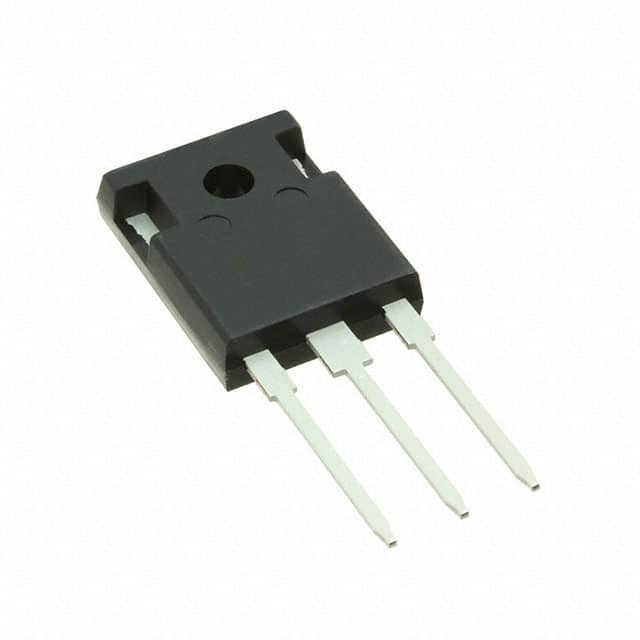

    IPW60R090CFD7

    SKU: 115279
    Manufacturer: Infineon Technologies AG
    Trans MOSFET N-CH 600V 25A 3-Pin(3+Tab) TO-247 Tube
    830 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant
    ECCN (US) EAR99
    Part Status Active
    Automotive No
    PPAP No
    Product Category Power MOSFET
    Configuration Single
    Channel Mode Enhancement
    Channel Type N
    Number of Elements per pcs 1
    Maximum Drain Source Voltage (V) 600
    Maximum Gate Source Voltage (V) 20
    Maximum Continuous Drain Current (A) 25
    Maximum Drain Source Resistance (mOhm) 90@10V
    Typical Gate Charge @ Vgs (nC) 51@10V
    Typical Gate Charge @ 10V (nC) 51
    Typical Input Capacitance @ Vds (pF) 2103@400V
    Maximum Power Dissipation (mW) 125000
    Typical Fall Time (ns) 6
    Typical Rise Time (ns) 17
    Typical Turn-Off Delay Time (ns) 88
    Typical Turn-On Delay Time (ns) 33
    Operating Temperature-Min -55
    Operating Temperature-Max 150
    Packing Method Tube
    Original Package TO-247
    Pin Count 3
    Terminal Form Through Hole
    Package Height 21
    Package Length 15.8
    Package Width 5
    PCB changed 3
