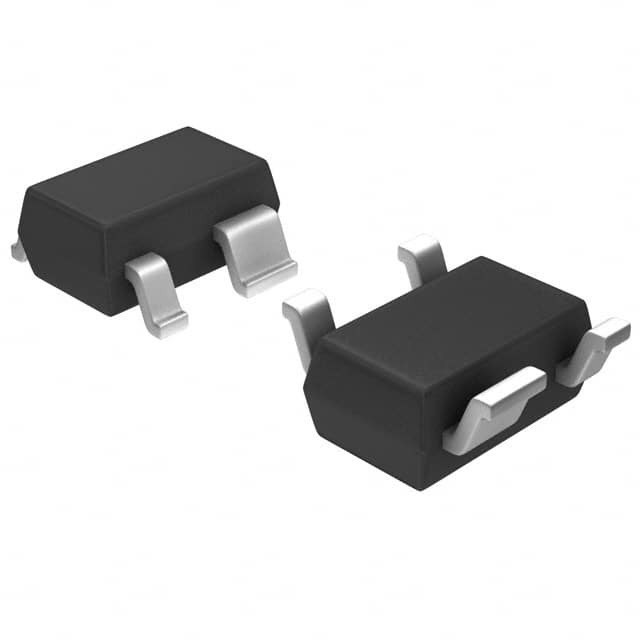

BGA614H6327

SKU: 18163

Manufacturer: Infineon Technologies AG

RF Amp Single MMIC Amp 2.4GHz 3V 4-Pin(3+Tab) SOT-343 T/R

1260 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Manufacturer Type	MMIC Amplifier
Number of Channels per Chip	1
Maximum Operating Frequency (MHz)	2400
Typical 3dB Bandwidth (MHz)	2400
Typical Power Gain (dB)	17.5@2000MHz
Typical Output Power (dBm)	12@2000MHz
Typical Output Intercept Point (dBm)	25@2000MHz
Maximum Input Return Loss (dB)	18(Typ)@2000MHz
Maximum Output Return Loss (dB)	20(Typ)@2000MHz
Typical Noise Figure (dB)	2.1@2000MHz
Operating Supply Voltage-Max (V)	3
Maximum Single Supply Voltage (V)	3
Maximum Supply Current (mA)	40(Typ)@5V
Power Supply Type	Single
Maximum Power Dissipation (mW)	240
Operating Temperature-Min	-65
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	SOT-343
Pin Count	4
Standard Package Method	SOT-343
Terminal Form	Surface Mount
Package Height	0.9(Max)
Package Length	2
Package Width	1.25
PCB changed	3
Tab	Tab
