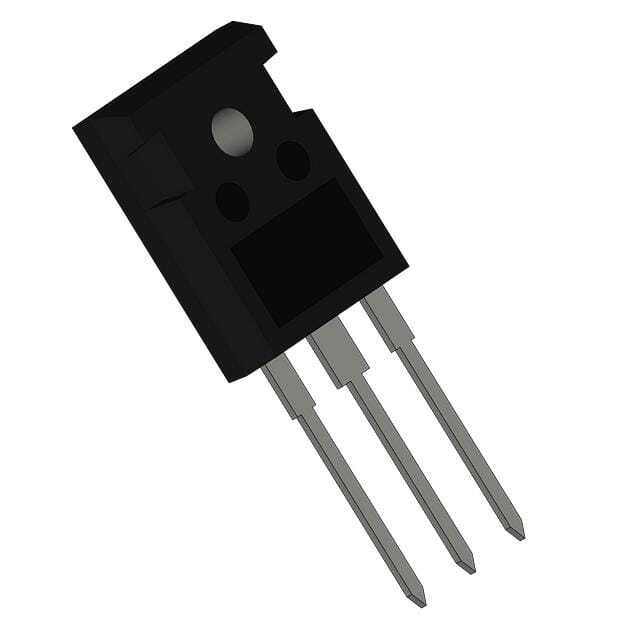

AUIRFP4568

SKU: 37224

Manufacturer: Infineon Technologies AG

Trans MOSFET N-CH Si 150V 171A Automotive 3-Pin(3+Tab) TO-247AC Tube

3830 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
Automotive	Yes
PPAP	Unknown
Product Category	Power MOSFET
Body Material	Si
Configuration	Single
Process Technology	HEXFET
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	150
Maximum Gate Source Voltage (V)	±30
Maximum Gate Threshold Voltage (V)	5
Maximum Continuous Drain Current (A)	171
Maximum Gate Source Leakage Current (nA)	100
Maximum IDSS (uA)	20
Maximum Drain Source Resistance (mOhm)	5.9@10V
Typical Gate Charge @ Vgs (nC)	151@10V
Typical Gate Charge @ 10V (nC)	151
Typical Input Capacitance @ Vds (pF)	10470@50V
Maximum Power Dissipation (mW)	517000
Typical Fall Time (ns)	84
Typical Rise Time (ns)	119
Typical Turn-Off Delay Time (ns)	47
Typical Turn-On Delay Time (ns)	27
Operating Temperature-Min	-55
Operating Temperature-Max	175
Supplier Temperature Grade	Automotive
Packing Method	Tube
Original Package	TO-247AC
Pin Count	3
Standard Package Method	TO-247
Terminal Form	Through Hole
Package Height	20.7(Max)
Package Length	15.87(Max)
Package Width	5.31(Max)
PCB changed	3
Tab	Tab
