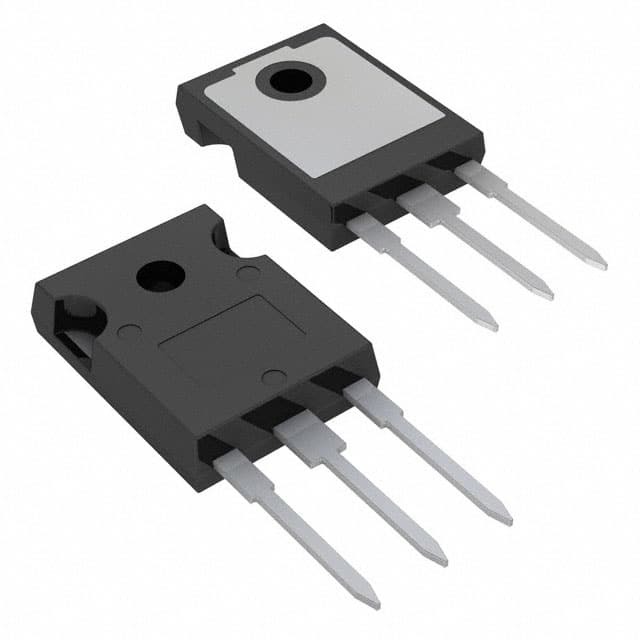

AUIRFP2907

SKU: 32127

Manufacturer: Infineon Technologies AG

Trans MOSFET N-CH Si 75V 209A Automotive 3-Pin(3+Tab) TO-247AC Tube

1330 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	Yes
PPAP	Unknown
Product Category	Power MOSFET
Body Material	Si
Configuration	Single
Process Technology	HEXFET
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	75
Maximum Gate Source Voltage (V)	±20
Maximum Continuous Drain Current (A)	209
Maximum Drain Source Resistance (mOhm)	4.5@10V
Typical Gate Charge @ Vgs (nC)	410@10V
Typical Gate Charge @ 10V (nC)	410
Typical Input Capacitance @ Vds (pF)	13000@25V
Maximum Power Dissipation (mW)	470000
Typical Fall Time (ns)	130
Typical Rise Time (ns)	190
Typical Turn-Off Delay Time (ns)	130
Typical Turn-On Delay Time (ns)	23
Operating Temperature-Min	-55
Operating Temperature-Max	175
Supplier Temperature Grade	Automotive
Packing Method	Tube
Pin Count	3
Standard Package Method	TO-247
Original Package	TO-247AC
Terminal Form	Through Hole
Package Height	20.7(Max)
Package Length	15.87(Max)
Package Width	5.31(Max)
PCB changed	3
Tab	Tab
