SD5491-004

SKU: 77777

Manufacturer: Honeywell

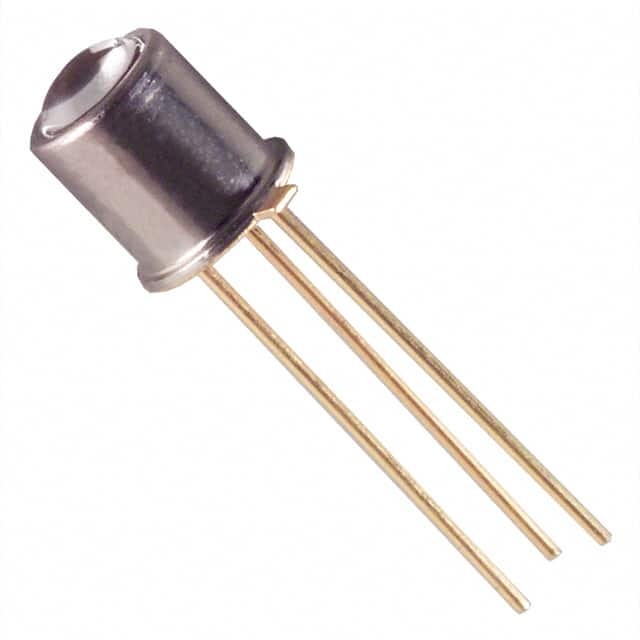

Phototransistor IR Chip Silicon 935nm 3-Pin TO-18

3100 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Type	IR Chip
Phototransistor Type	Phototransistor
Lens Shape Type	Domed
Body Material	Silicon
Number of Channels per Chip	1
Polarity	NPN
Half Intensity Angle Degrees (°)	12
Viewing Orientation	Top View
Peak Wavelength (nm)	935
Maximum Rise Time (ns)	2000(Typ)
Maximum Fall Time (ns)	2000(Typ)
Maximum Light Current (uA)	8000
Maximum Dark Current (nA)	100
Maximum Emitter-Collector Voltage (V)	5
Collector-Emitter Voltage-Max (V)	30
Maximum Collector-Emitter Saturation Voltage (V)	0.4
Maximum Power Dissipation (mW)	150
Fabrication Technology	NPN Transistor
Operating Temperature-Min	-55
Operating Temperature-Max	125
Standard Package Method	TO-206-AA
Original Package	TO-18
Pin Count	3
Diameter	5.38(Max)
Terminal Form	Through Hole
Package Height	5.97
PCB changed	3
