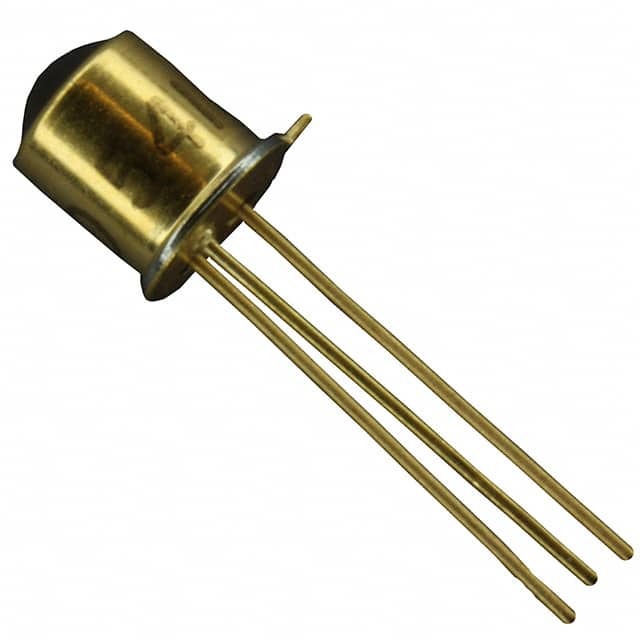

SD5410-002

SKU: 101592

Manufacturer: Honeywell

Photodarlington Chip Silicon 3-Pin TO-46

3670 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8541.40.70.80
Automotive	No
PPAP	No
Type	Chip
Phototransistor Type	Photodarlington
Lens Shape Type	Domed
Body Material	Silicon
Number of Channels per Chip	1
Polarity	NPN
Half Intensity Angle Degrees (°)	12
Viewing Orientation	Top View
Maximum Rise Time (ns)	75000(Typ)
Maximum Fall Time (ns)	75000(Typ)
Maximum Light Current (uA)	4000(Min)
Maximum Dark Current (nA)	250
Maximum Emitter-Collector Voltage (V)	5
Collector-Emitter Voltage-Max (V)	15
Maximum Collector-Emitter Saturation Voltage (V)	1.1
Maximum Power Dissipation (mW)	150
Fabrication Technology	NPN Darlington
Operating Temperature-Min	-55
Operating Temperature-Max	125
Standard Package Method	TO-206-AB
Original Package	TO-46
Pin Count	3
Diameter	5.56(Max)
Terminal Form	Through Hole
Package Height	6.27(Max)
PCB changed	3
