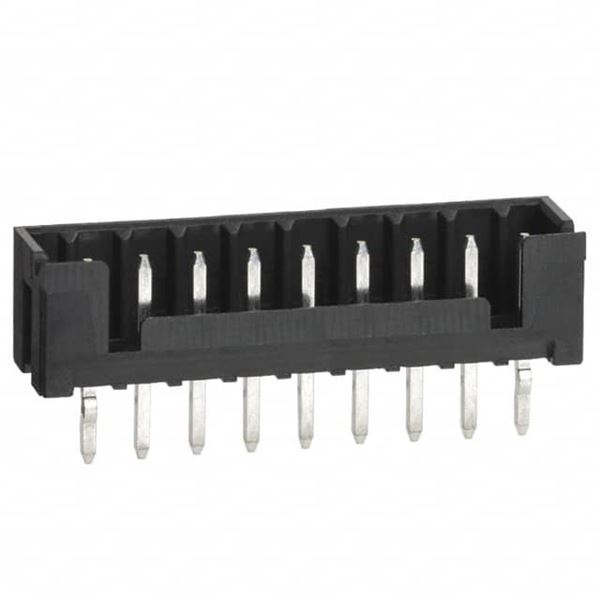

DF3A-9P-2DSA

SKU: 103346

Manufacturer: Hirose Electric

Conn Shrouded Header HDR 9 POS 2mm Solder ST Thru-Hole Bag

2410 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
Automotive	No
PPAP	No
Type	Shrouded Header
Gender	HDR
Number of Contacts	9
Number of Rows	1
Termination Method	Solder
Terminal Pitch (mm)	2
Body Orientation	Straight
Polarization Type	Dual Slot
Current Rating-Max(A)	3
Voltage Rating-Max	250VAC
Insulation Resistance (MOhm)	1000
Maximum Contact Resistance (mOhm)	30
Operating Temperature-Min	-30
Operating Temperature-Max	85
Mating Cycle (Cycles)	30
Packing Method	Bag
Length (mm)	20
Depth (mm)	5
Height (mm)	5
