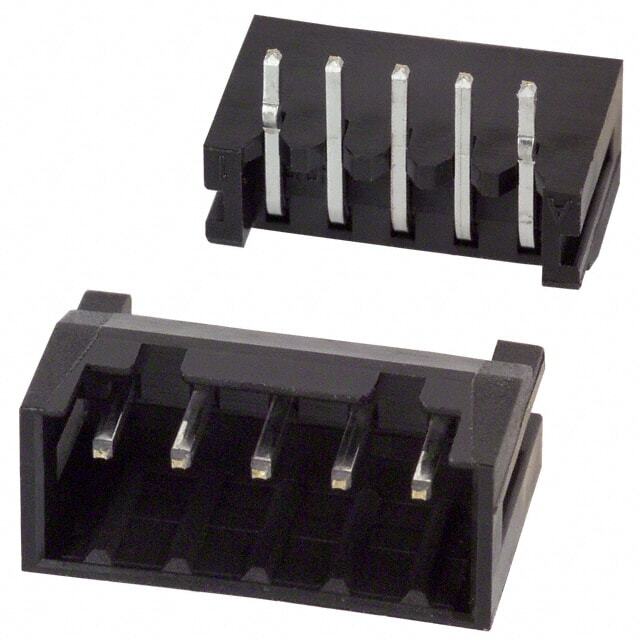

DF3A-5P-2DS

SKU: 129311

Manufacturer: Hirose Electric

Conn Shrouded Header HDR 5 POS 2mm Solder RA Side Entry Thru-Hole Bag

2390 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
Automotive	No
PPAP	No
Type	Shrouded Header
Gender	HDR
Number of Contacts	5
Number of Rows	1
Termination Method	Solder
Terminal Pitch (mm)	2
Body Orientation	Right Angle
Polarization Type	Center Slot
Current Rating-Max(A)	3
Voltage Rating-Max	250VAC
Insulation Resistance (MOhm)	1000
Maximum Contact Resistance (mOhm)	30
Operating Temperature-Min	-30
Operating Temperature-Max	85
Mating Cycle (Cycles)	30
Packing Method	Bag
Product Weight (g)	0.273
Length (mm)	12
Depth (mm)	7.2
Height (mm)	5
Contact Plating Thickness	1um
Tail Length (mm)	2.9
