S1731-46R

SKU: 63762

Manufacturer: Harwin

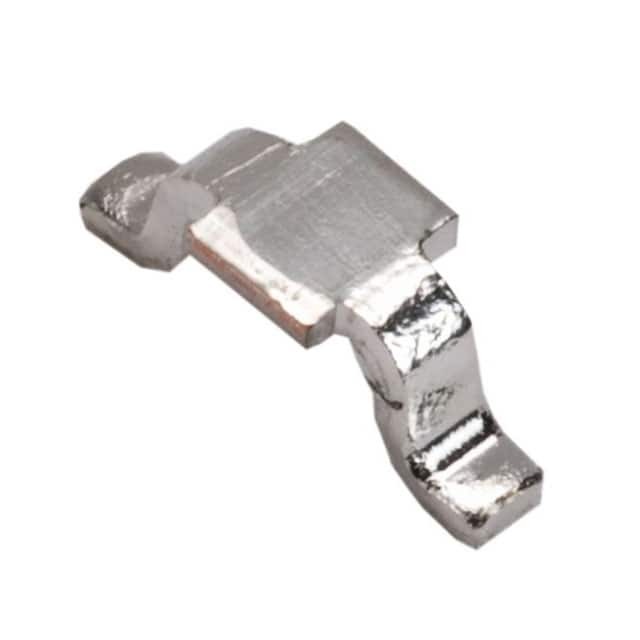

Conn Shorting Link Jumper 2 POS 5.32mm Solder ST SMD T/R

3340 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.90.40.00
Automotive	No
PPAP	No
Type	Shorting Link Jumper
Number of Contacts	2
Number of Rows	1
Termination Method	Solder
Terminal Pitch (mm)	5.32
Body Orientation	Straight
Current Rating-Max(A)	10
Maximum Contact Resistance (mOhm)	20
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Product Weight (g)	0.081
Length (mm)	6.86
Depth (mm)	2.54
Height (mm)	2.54
Keyed	No
