2021602201

SKU: 9164

Manufacturer: HARTING Technology Group

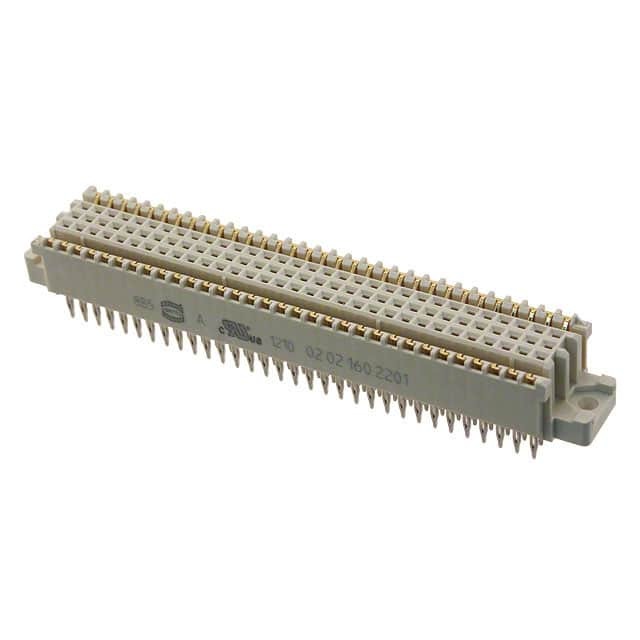

Conn DIN 41612 F 160 POS 2.54mm Press Fit ST Thru-Hole har-bus® Box

550 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
Automotive	No
PPAP	No
Type	DIN 41612
Gender	F
Number of Contacts	160
Termination Method	Press Fit
Terminal Pitch (mm)	2.54
Body Orientation	Straight
Current Rating-Max(A)	1
Insulation Resistance (MOhm)	10000
Maximum Contact Resistance (mOhm)	20/30
Operating Temperature-Min	-40
Operating Temperature-Max	105
Mating Cycle (Cycles)	250
Packing Method	Box
Length (mm)	94.9
Depth (mm)	16
Height (mm)	11.6
