2011602101

SKU: 36827

Manufacturer: HARTING Technology Group

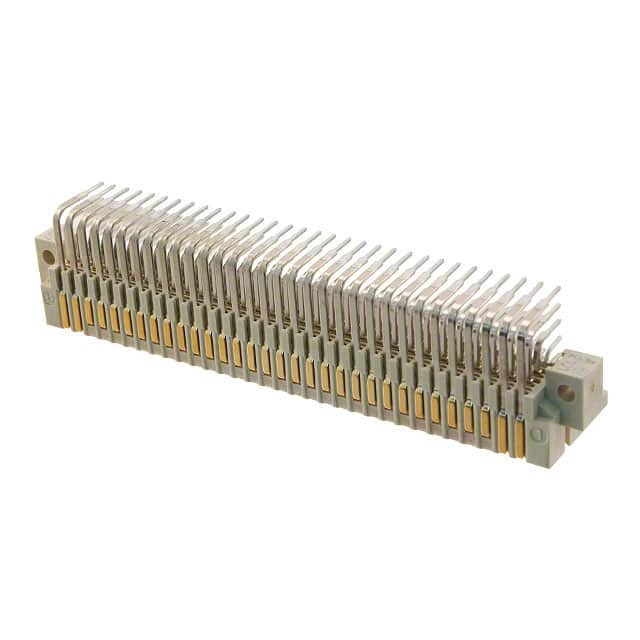

Conn DIN 41612 M 160 POS 2.54mm Solder RA Thru-Hole Tube

1070 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
Automotive	No
PPAP	No
Type	DIN 41612
Gender	M
Number of Contacts	160
Termination Method	Solder
Terminal Pitch (mm)	2.54
Body Orientation	Right Angle
Current Rating-Max(A)	1
Insulation Resistance (MOhm)	10000
Maximum Contact Resistance (mOhm)	20/30
Operating Temperature-Min	-55
Operating Temperature-Max	125
Mating Cycle (Cycles)	250
Packing Method	Tube
Product Weight (g)	19.28
Length (mm)	93.9
Depth (mm)	20.28
Height (mm)	11
Tail Length (mm)	2.93
