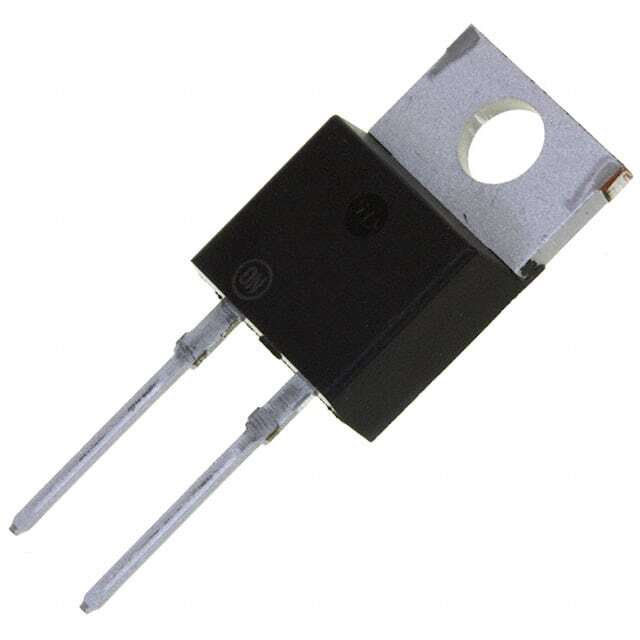

MUR1560

SKU: 70300

Manufacturer: Good-Ark Semiconductor

Rectifier Diode Switching 600V 15A 50ns 2-Pin(2+Tab) TO-220AC Tube

2140 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
Automotive	No
PPAP	No
Type	Switching Diode
Maximum DC Reverse Voltage (V)	600
Configuration	Single
Peak Reverse Repetitive Voltage (V)	600
Maximum Continuous Forward Current (A)	15
Peak Non-Repetitive Surge Current (A)	150
Peak Forward Voltage (V)	1.9
Peak Reverse Current (uA)	10
Peak Reverse Recovery Time (ns)	50
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tube
Original Package	TO-220AC
Pin Count	2
Terminal Form	Through Hole
Package Height	8.7
Package Length	10
Package Width	4.6
PCB changed	2
