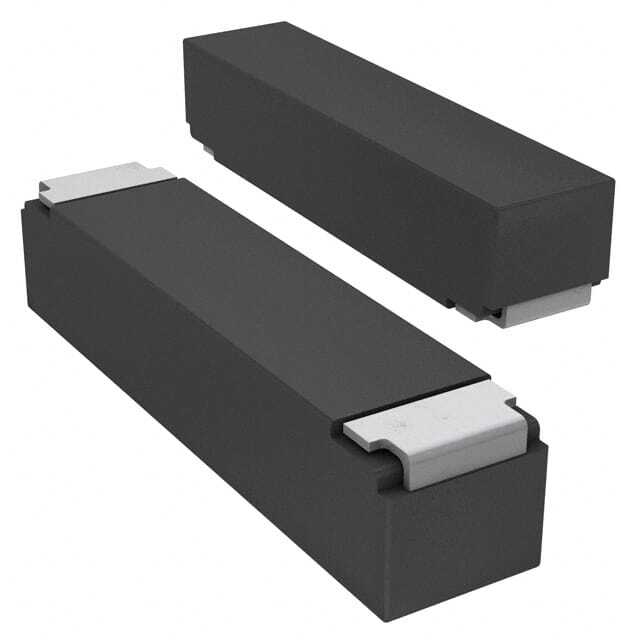

B82450A2364A

SKU: 88671

Manufacturer: EPCOS (TDK)

Inductor Transponder Coil Molded Wirewound 2360uH 3% 125KHz 50Q-Factor Ferrite 25Ohm DCR Automotive T/R

2050 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
Automotive	Yes
PPAP	Unknown
Type	Transponder Coil
Technology	Wirewound
Protection Style	Molded
Core Body Material	Ferrite
Inductance (H)	2360u
Tolerance	3%
Inductance Test Frequency (Hz)	125K
Maximum DC Resistance (Ohm)	25
Minimum Quality Factor	50
Quality Test Frequency (Hz)	125K
Minimum Self Resonant Frequency (Hz)	>2M
Number of Terminals	2
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Length (mm)	11.6
Terminal Form	Surface Mount
Depth (mm)	3.5
