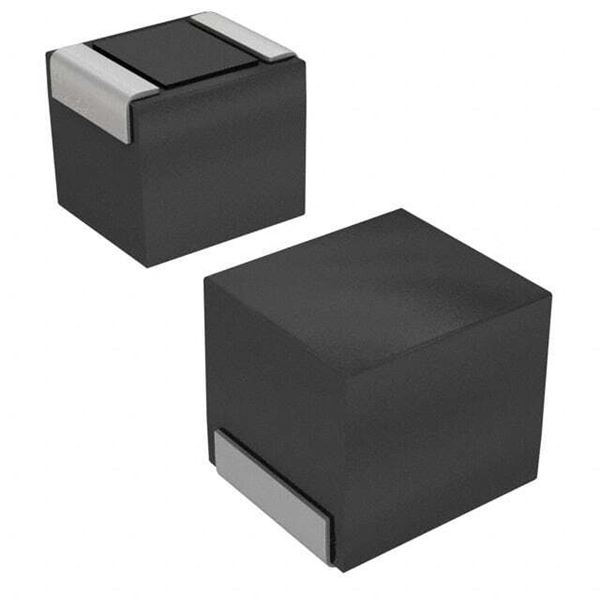

B82442T1105K50

SKU: 109915

Manufacturer: EPCOS (TDK)

Inductor General Purpose Chip Molded Wirewound 1000uH 10% 252KHz 30Q-Factor Ferrite 0.15A 9.5Ohm DCR 2220 Automotive T/R

690 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
Automotive	Yes
PPAP	Unknown
Type	General Purpose Chip
Technology	Wirewound
Protection Style	Molded
Core Body Material	Ferrite
Inductance (H)	1000u
Inductance Decrease Percentage @ Isat (%)	10
Tolerance	10%
Inductance Test Frequency (Hz)	252K
Maximum DC Current (A)	0.15
Maximum Saturation Current (A)	0.246
Maximum DC Resistance (Ohm)	9.5
Minimum Quality Factor	30
Quality Test Frequency (Hz)	252K
Minimum Self Resonant Frequency (Hz)	1.8M
Number of Terminals	2
Case Size	2220
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Length (mm)	5.9
Terminal Form	Surface Mount
Depth (mm)	5.3
