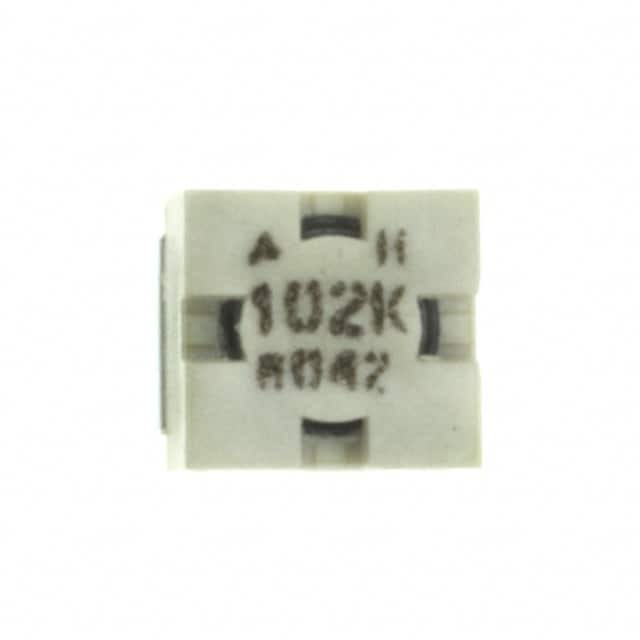

B82442H1102K

SKU: 16004

Manufacturer: EPCOS (TDK)

Inductor General Purpose Molded Drum Core 1uH 10% 7.96MHz 10Q-Factor Ferrite 2.5A 0.024Ohm DCR 2220 Automotive T/R

1210 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8504.50.80.00
Automotive	Yes
PPAP	Unknown
Type	General Purpose
Technology	Drum Core
Protection Style	Molded
Core Body Material	Ferrite
Inductance (H)	1u
Tolerance	10%
Inductance Test Frequency (Hz)	7.96M
Maximum DC Current (A)	2.5
Maximum Saturation Current (A)	2.5
Maximum DC Resistance (Ohm)	0.024
Minimum Quality Factor	10
Quality Test Frequency (Hz)	7.96M
Minimum Self Resonant Frequency (Hz)	95M
Number of Terminals	2
Case Size	2220
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Length (mm)	5.9
Terminal Form	Surface Mount
Depth (mm)	5.3
