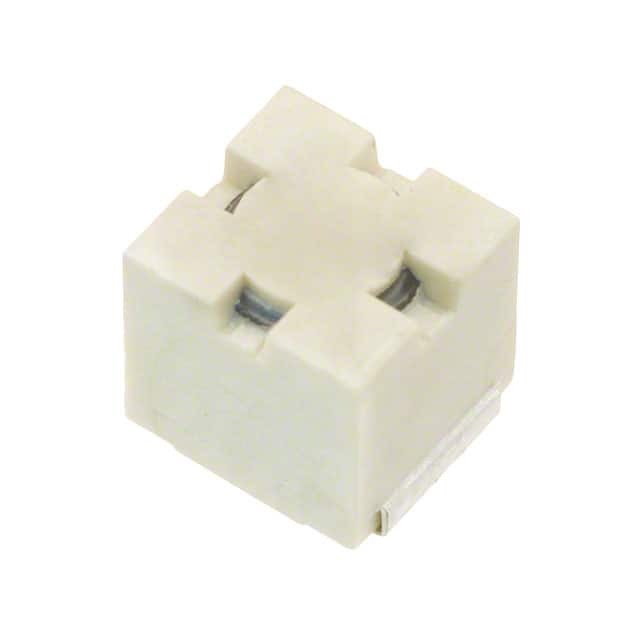

B82442A1683K

SKU: 100768

Manufacturer: EPCOS (TDK)

Inductor General Purpose Chip Drum Core 68uH 10% 2.52MHz 10Q-Factor Ferrite 0.29A 0.96Ohm DCR 2220 Automotive T/R

2530 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	Yes
PPAP	Unknown
Type	General Purpose Chip
Technology	Drum Core
Core Body Material	Ferrite
Inductance (H)	68u
Tolerance	10%
Inductance Test Frequency (Hz)	2.52M
Maximum DC Current (A)	0.29
Maximum Saturation Current (A)	0.29
Maximum DC Resistance (Ohm)	0.96
Minimum Quality Factor	10
Quality Test Frequency (Hz)	2.52M
Minimum Self Resonant Frequency (Hz)	7M
Number of Terminals	2
Case Size	2220
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Length (mm)	5.9
Terminal Form	Surface Mount
Depth (mm)	5.3
