ZY22

SKU: 79143

Manufacturer: EIC Semiconductor

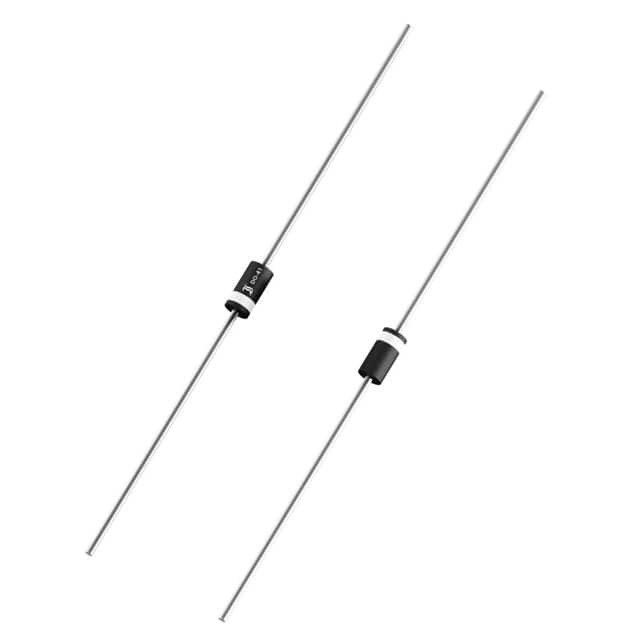

Zener Diode Single 22V 6% 15Ohm 2000mW 2-Pin DO-41

2210 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.50
Automotive	No
PPAP	No
Type	Voltage Regulator
Configuration	Single
Nominal Zener Voltage (V)	22
Zener Voltage Tolerance	6%
Maximum Power Dissipation (mW)	2000
Test Current (mA)	25
Maximum Reverse Leakage Current (uA)	1
Maximum Regulator Current (mA)	66
Maximum Zener Impedance (Ohm)	15
Maximum Power Dissipation @ 25C (mW)	2000
Maximum Noise Density (uV/rtHz)	0.085
Operating Temperature-Min	-55
Operating Temperature-Max	150
Typical Voltage Temperature Coefficient	0.085%/K
Original Package	DO-41
Pin Count	2
Standard Package Method	DO-204-AL
Diameter	2.74(Max)
Terminal Form	Through Hole
Package Length	5.2(Max)
PCB changed	2
