ZY24

SKU: 114546

Manufacturer: Diotec Semiconductor AG

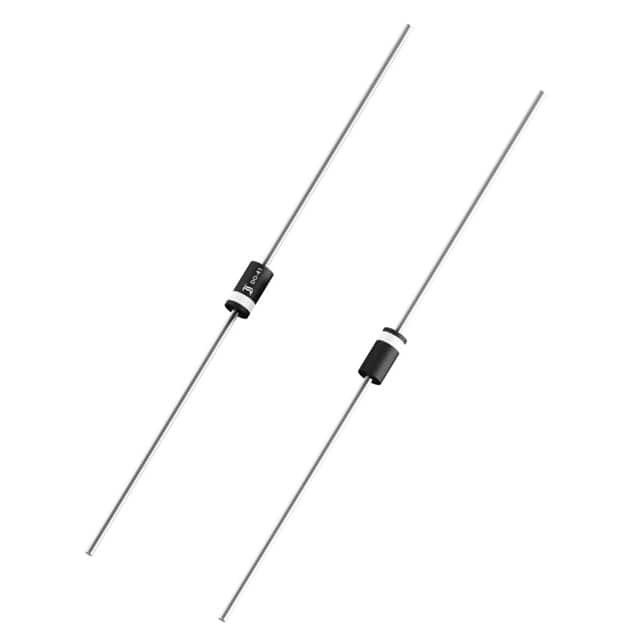

Zener Diode Single 24.2V 6% 15Ohm 2000mW 2-Pin DO-41 Ammo

1060 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.50
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Voltage Regulator
Configuration	Single
Nominal Zener Voltage (V)	24.2
Zener Voltage Tolerance	6%
Maximum Power Dissipation (mW)	2000
Test Current (mA)	25
Maximum Reverse Leakage Current (uA)	1
Maximum Regulator Current (mA)	78@Ta=50C
Maximum Zener Impedance (Ohm)	15
Operating Temperature-Min	-50
Operating Temperature-Max	150
Supplier Temperature Grade	Automotive
Typical Voltage Temperature Coefficient	0.085%/°C
Packing Method	Ammo
Original Package	DO-41
Pin Count	2
Standard Package Method	DO-204-AL
Diameter	2.6
Terminal Form	Through Hole
Package Length	5.1
PCB changed	2
