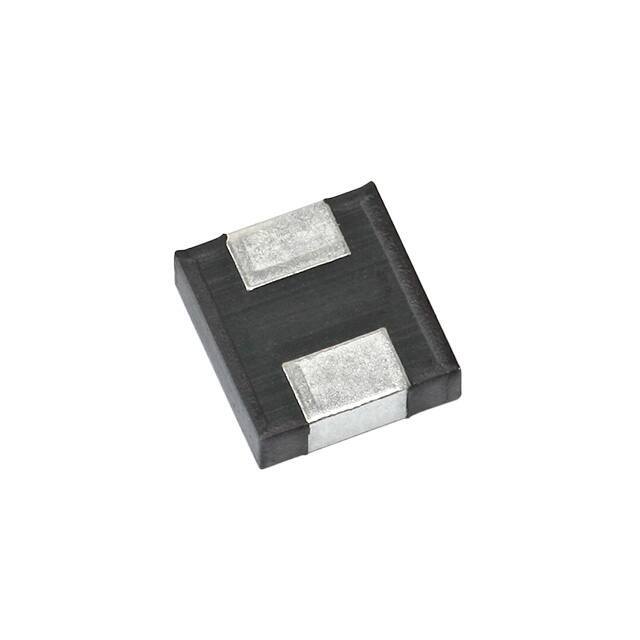

MPIA4040R4-3R3-R

SKU: 77208

Manufacturer: Eaton

Inductor Power Shielded Wirewound 3.3uH 20% 100KHz 3.3A 0.049Ohm DCR 1616 Automotive T/R

4160 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	Yes
PPAP	Unknown
Type	Power
Technology	Wirewound
Protection Style	Shielded
Inductance (H)	3.3u
Tolerance	20%
Inductance Test Frequency (Hz)	100K
Maximum DC Current (A)	3.3
Maximum Saturation Current (A)	4.5
Maximum DC Resistance (Ohm)	0.049(Typ)
Number of Terminals	2
Case Size	1616
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Tape and Reel
Length (mm)	4.7
Depth (mm)	4.31
