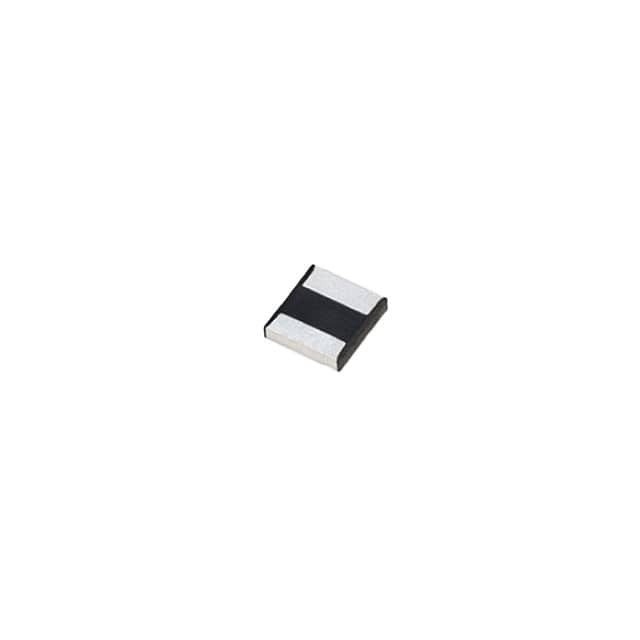

MPI5451R1-150-R

SKU: 41970

Manufacturer: Eaton

Inductor Power Shielded Wirewound 15uH 15% 100KHz 1.1A 0.4Ohm DCR 2020

2620 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Type	Power
Technology	Wirewound
Protection Style	Shielded
Inductance (H)	15u
Inductance Decrease Percentage @ Isat (%)	20
Tolerance	15%
Inductance Test Frequency (Hz)	100K
Maximum DC Current (A)	1.1
Maximum Saturation Current (A)	2.2
Maximum DC Resistance (Ohm)	0.4(Typ)
Number of Terminals	2
Case Size	2020
Operating Temperature-Min	-40
Operating Temperature-Max	125
Length (mm)	5.74
Terminal Form	Surface Mount
Depth (mm)	5.43
