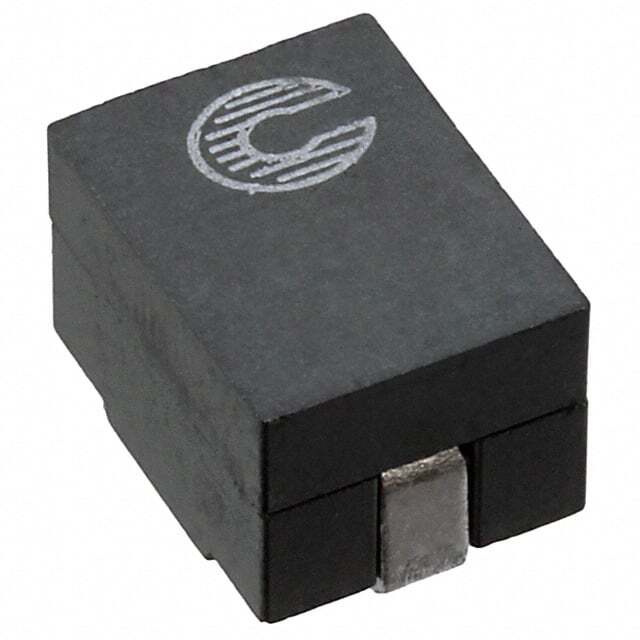

FP1007R6-R18-R

SKU: 16244

Manufacturer: Eaton

Inductor Power Wirewound 0.18uH/0.129uH 10% 100KHz Ferrite 61A 0.00029Ohm DCR T/R

2890 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	Power
Technology	Wirewound
Core Body Material	Ferrite
Inductance (H)	0.18u(OCL)/0.129u
Tolerance	10%
Inductance Test Frequency (Hz)	100K
Maximum DC Current (A)	61
Maximum Saturation Current (A)	60
Maximum DC Resistance (Ohm)	0.00029(Typ)
Number of Terminals	2
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Length (mm)	10.5
Depth (mm)	8
