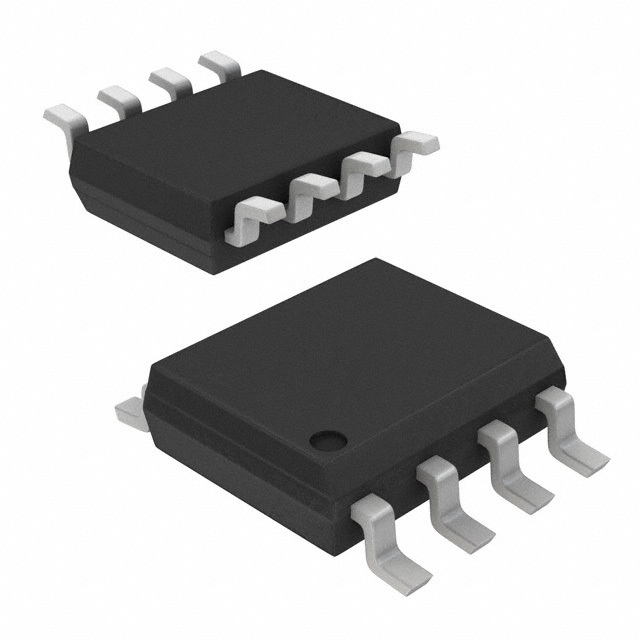

TLV271CS-13

SKU: 64646

Manufacturer: Diodes Incorporated

Op Amp Single GP R-R O/P ±8V/16V 8-Pin SO T/R

990 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Type	General Purpose Amplifier
Manufacturer Type	General Purpose Amplifier
Number of Channels per Chip	1
Rail to Rail	Rail to Rail Output
Process Technology	CMOS
Output Type	CMOS
Maximum Input Offset Voltage (mV)	5@5V
Minimum Single Supply Voltage (V)	2.7
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	16
Minimum Dual Supply Voltage (V)	±1.35
Typical Dual Supply Voltage (V)	±5
Maximum Dual Supply Voltage (V)	±8
Maximum Input Offset Current (uA)	0.00006@5V
Maximum Input Bias Current (uA)	0.00006@5V
Maximum Supply Current (mA)	0.66@5V
Typical Output Current (mA)	8@5V
Power Supply Type	Single
Maximum Power Dissipation (mW)	396
Typical Slew Rate (V/us)	2@5V
Typical Input Noise Voltage Density (nV/rtHz)	35@5V
Typical Voltage Gain (dB)	110
Typical Noninverting Input Current Noise Density (pA/rtHz)	0.0006@5V
Minimum PSRR (dB)	70
Minimum CMRR (dB)	65
Minimum CMRR Range (dB)	65 to 70
Typical Gain Bandwidth Product (MHz)	1.9
Typical Settling Time (ns)	2000
Shut Down Support	No
Operating Temperature-Min	0
Operating Temperature-Max	70
Supplier Temperature Grade	Commercial
Packing Method	Tape and Reel
Original Package	SO
Pin Count	8
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.45
Package Length	4.9
Package Width	3.9
PCB changed	8
