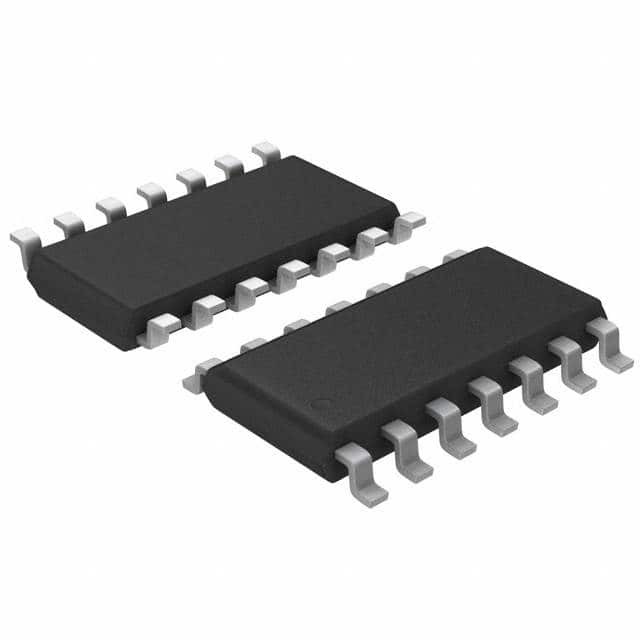

PS4066ACSDE

SKU: 120160

Manufacturer: Diodes Incorporated

Analog Switch Quad SPST 14-Pin SOIC N

70 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Type	Analog Switch
Configuration	Quad SPST
Switch Architecture	SPST
Number of Channels per Chip	4
Number of Inputs per Chip	4
Number of Outputs per Chip	4
Chip Enable Signals	Yes
Polarity	Non-Inverting
Maximum Turn-On Time (ns)	185@3V
Maximum Turn-Off Time (ns)	150@3V
Maximum Frequency (25°C) @ Vcc (MHz)	100(Typ)@12V
Input Signal Type	Single
Output Signal Type	Single
Minimum Single Supply Voltage (V)	3
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	16
Typical Supply Current (mA)	0.000001@12V@0C to 70C
Maximum Supply Current (mA)	0.001@5.5V@0C to 70C
Maximum Low Level Output Current (mA)	30
Maximum High Level Output Current (mA)	30
Maximum On Resistance (Ohm)	170@3V
Maximum On Resistance Range (Ohm)	150 to 250
Power Supply Type	Single
Maximum Power Dissipation (mW)	650
Operating Temperature-Min	0
Operating Temperature-Max	70
Supplier Temperature Grade	Commercial
Original Package	SOIC N
Pin Count	14
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.25(Min)
Package Length	8.65
Package Width	3.9
PCB changed	14
