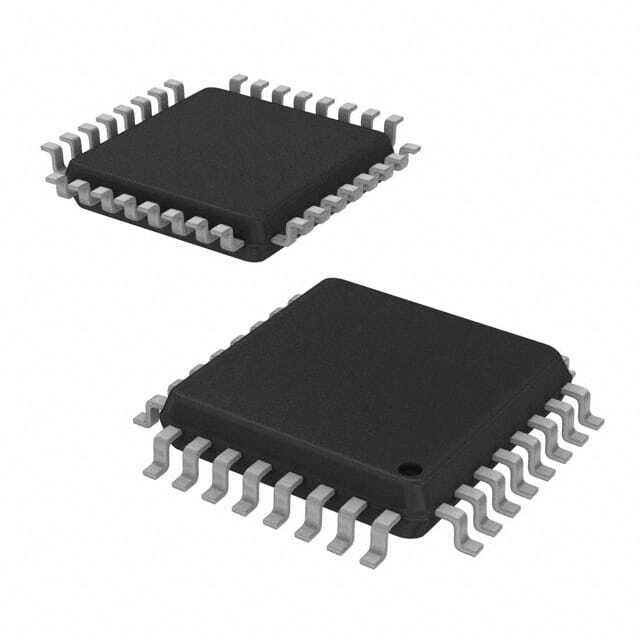

PI6C4911510FAEIE

SKU: 16715

Manufacturer: Diodes Incorporated

Clock Fanout Buffer 10-OUT 2-IN 1:10 32-Pin TQFP EP

2750 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Fanout Buffer
Number of Outputs per Chip	10
Maximum Propagation Delay Time @ Maximum CL (ns)	1.2(Typ)@2.375V to 3.6V
Absolute Propagation Delay Time (ns)	1.2(Typ)
Maximum Duty Cycle	52%
Input Logic Level	CML
Output Logic Level	LVPECL
Operating Supply Voltage-Min (V)	2.375
Typical Operating Supply Voltage (V)	2.5
Operating Supply Voltage-Max (V)	3.6
Maximum Quiescent Current (mA)	200
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Original Package	TQFP EP
Pin Count	32
Terminal Form	Surface Mount
Package Height	1.05
Package Length	7
Package Width	7
