PI4MSD5V9545ALE

SKU: 13878

Manufacturer: Diodes Incorporated

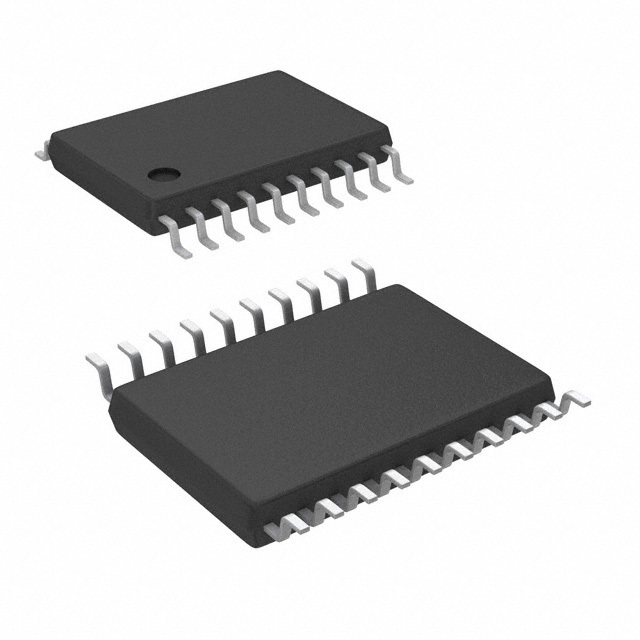

I2C Bus Switch 1-Element 4-IN 20-Pin TSSOP

1440 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Logic Function	I2C Bus Switch
Number of Elements per pcs	1
Number of Inputs per Chip	4
Number of Outputs per Chip	4
Absolute Propagation Delay Time (ns)	0.3
Maximum Propagation Delay Time @ Maximum CL (ns)	0.3@1.65V to 5.5V
Operating Supply Voltage-Min (V)	1.65
Typical Operating Supply Voltage (V)	1.8
Operating Supply Voltage-Max (V)	5.5
Maximum Quiescent Current (uA)	100
Typical Quiescent Current (uA)	65
Maximum Power Dissipation (mW)	100
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Original Package	TSSOP
Pin Count	20
Terminal Form	Surface Mount
Package Height	1
Package Length	6.5
Package Width	4.4
