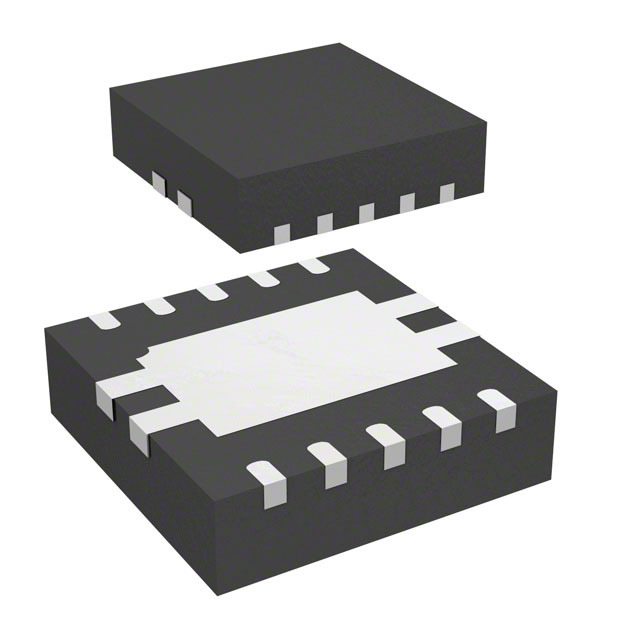

PI3USB221ZEE

SKU: 52223

Manufacturer: Diodes Incorporated

Analog Multiplexer Single 1:2 10-Pin TDFN EP

2420 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Type	Analog Multiplexer
Number of Channels per Chip	1
Number of Inputs per Chip	2
Number of Outputs per Chip	4
Chip Enable Signals	Yes
Maximum Data Rate (Mbps)	480(Typ)
Maximum Propagation Delay Bus to Bus (ns)	0.25(Typ)@3.3V@-40C to 85C
Maximum Turn-On Time (ns)	125@3.3V@-40C to 85C
Maximum Turn-Off Time (ns)	12@3.3V@-40C to 85C
Maximum Frequency (25°C) @ Vcc (MHz)	1100(Typ)@3.3V@-40C to 85C
Input Signal Type	Differential
Output Signal Type	Differential
Minimum Single Supply Voltage (V)	2.3
Typical Single Supply Voltage (V)	2.5
Maximum Single Supply Voltage (V)	3.6
Maximum Supply Current (mA)	0.05@3.6V@-40C to 85C
Maximum On Resistance (Ohm)	6@3V
Maximum On Resistance Range (Ohm)	5 to 10
Propagation Delay Test Condition (pF)	10
Power Supply Type	Single
Operating Temperature-Min	-40
Operating Temperature-Max	85
Original Package	TDFN EP
Pin Count	10
Standard Package Method	DFN
Terminal Form	Surface Mount
Package Height	0.85(Max)
Package Length	3
Package Width	3
PCB changed	10
