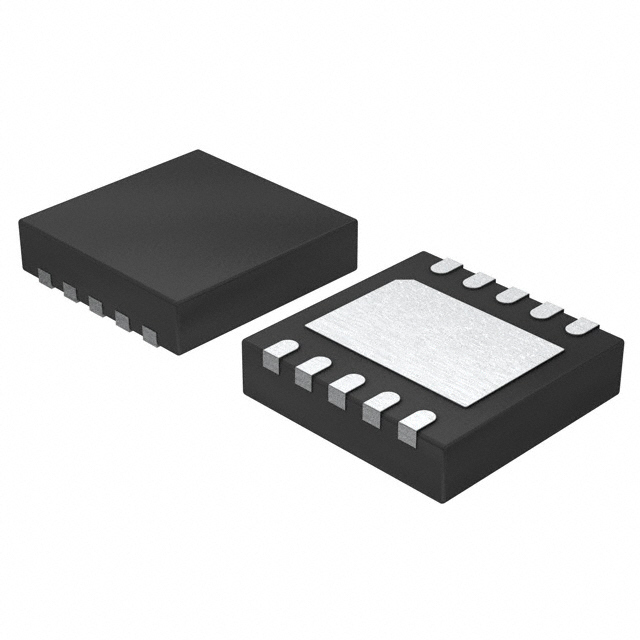

PI3USB221EZWEX

SKU: 56538

Manufacturer: Diodes Incorporated

Analog Multiplexer Single 1:2 10-Pin UDFN EP T/R

2660 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Analog Multiplexer
Number of Channels per Chip	1
Number of Inputs per Chip	2
Number of Outputs per Chip	4
Chip Enable Signals	Yes
Maximum Data Rate (Mbps)	480(Typ)
Maximum Propagation Delay Bus to Bus (ns)	0.25(Typ)@3.3V
Maximum Turn-On Time (ns)	125@3.3V
Maximum Turn-Off Time (ns)	12@3.3V
Maximum Frequency (25°C) @ Vcc (MHz)	1600(Typ)@3.3V
Input Signal Type	Differential
Output Signal Type	Differential
Minimum Single Supply Voltage (V)	2.3
Typical Single Supply Voltage (V)	3.3
Maximum Single Supply Voltage (V)	3.6
Typical Supply Current (mA)	0.025@3.6V
Maximum Supply Current (mA)	0.05@3.6V
Maximum On Resistance (Ohm)	6@3V
Maximum On Resistance Range (Ohm)	5 to 10
Propagation Delay Test Condition (pF)	10
Power Supply Type	Single
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	UDFN EP
Pin Count	10
Terminal Form	Surface Mount
Package Height	0.58
Package Length	3
Package Width	3
