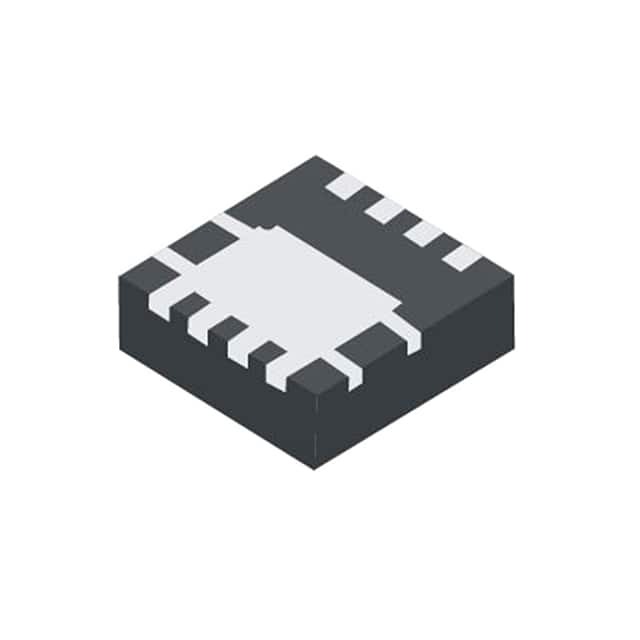

DMP2006UFGQ-13

SKU: 103393

Manufacturer: Diodes Incorporated

Trans MOSFET P-CH 20V 17.5A Automotive 8-Pin PowerDI EP T/R

3690 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	Yes
PPAP	Yes
Product Category	Power MOSFET
Configuration	Single Quad Drain Triple Source
Channel Mode	Enhancement
Channel Type	P
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	20
Maximum Gate Source Voltage (V)	±10
Maximum Continuous Drain Current (A)	17.5
Maximum Drain Source Resistance (mOhm)	5.5@4.5V
Typical Gate Charge @ Vgs (nC)	140@10V
Typical Gate Charge @ 10V (nC)	140
Typical Input Capacitance @ Vds (pF)	5404@10V
Maximum Power Dissipation (mW)	2300
Typical Fall Time (ns)	104
Typical Rise Time (ns)	19
Typical Turn-Off Delay Time (ns)	146
Typical Turn-On Delay Time (ns)	9.1
Operating Temperature-Min	-55
Operating Temperature-Max	150
Supplier Temperature Grade	Automotive
Packing Method	Tape and Reel
Original Package	PowerDI EP
Pin Count	8
Terminal Form	Surface Mount
Package Height	0.78
Package Length	3.3
Package Width	3.3
