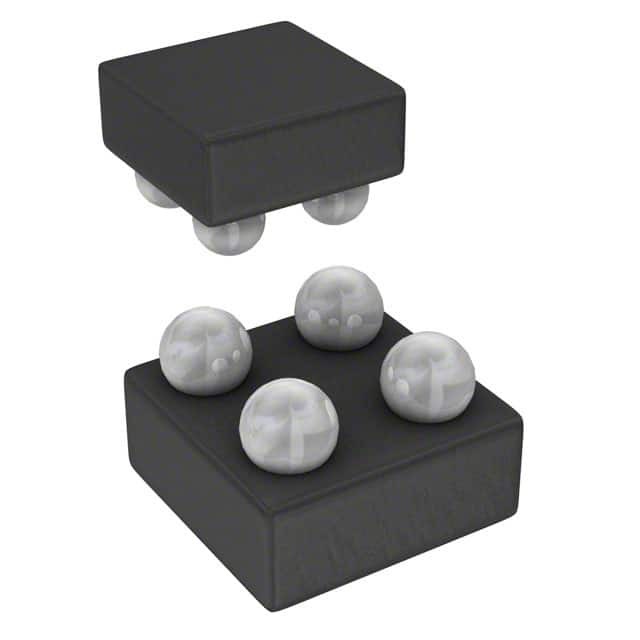

DMP1081UCB4-7

SKU: 68143

Manufacturer: Diodes Incorporated

Trans MOSFET P-CH 12V 3.3A 4-Pin U-WLB T/R

2340 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single Dual Drain
Process Technology	LDMOS
Channel Mode	Enhancement
Channel Type	P
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	12
Maximum Gate Source Voltage (V)	-6
Maximum Continuous Drain Current (A)	3.3
Maximum Drain Source Resistance (mOhm)	80@4.5V
Typical Gate Charge @ Vgs (nC)	2.5@4.5V
Typical Input Capacitance @ Vds (pF)	213@6V
Maximum Power Dissipation (mW)	1590
Typical Fall Time (ns)	28.4
Typical Rise Time (ns)	20.6
Typical Turn-Off Delay Time (ns)	38.4
Typical Turn-On Delay Time (ns)	16.7
Operating Temperature-Min	-55
Operating Temperature-Max	150
Supplier Temperature Grade	Automotive
Packing Method	Tape and Reel
Original Package	U-WLB
Pin Count	4
Terminal Form	Surface Mount
Package Height	0.38
Package Length	1
Package Width	1
