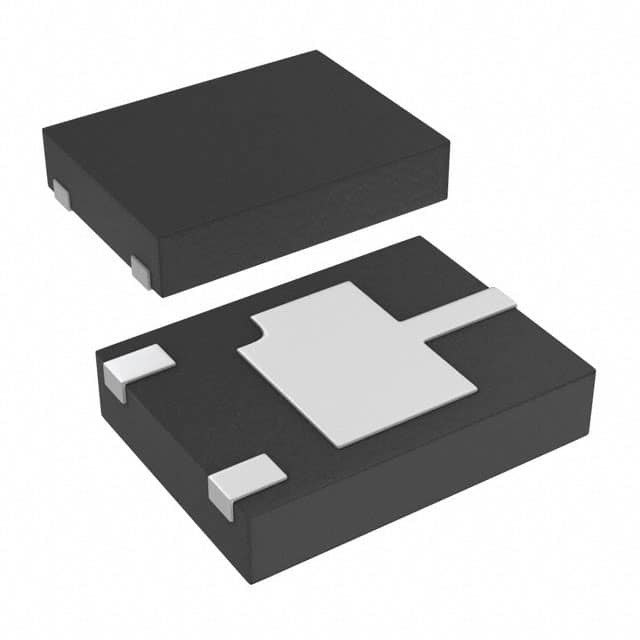

DMP1045UFY4-7

SKU: 16155

Manufacturer: Diodes Incorporated

Trans MOSFET P-CH 12V 5.5A 3-Pin X2-DFN T/R

1630 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single
Channel Mode	Enhancement
Channel Type	P
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	12
Maximum Gate Source Voltage (V)	±8
Maximum Gate Threshold Voltage (V)	1
Maximum Continuous Drain Current (A)	5.5
Maximum Gate Source Leakage Current (nA)	10000
Maximum IDSS (uA)	1
Maximum Drain Source Resistance (mOhm)	32@4.5V
Typical Gate Charge @ Vgs (nC)	23.7@8V
Typical Input Capacitance @ Vds (pF)	1291@10V
Maximum Power Dissipation (mW)	1700
Typical Fall Time (ns)	75
Typical Rise Time (ns)	22
Typical Turn-Off Delay Time (ns)	74
Typical Turn-On Delay Time (ns)	14
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	X2-DFN
Pin Count	3
Standard Package Method	DFN
Terminal Form	Surface Mount
Package Height	0.35(Max)
Package Length	1.5
Package Width	2
PCB changed	3
