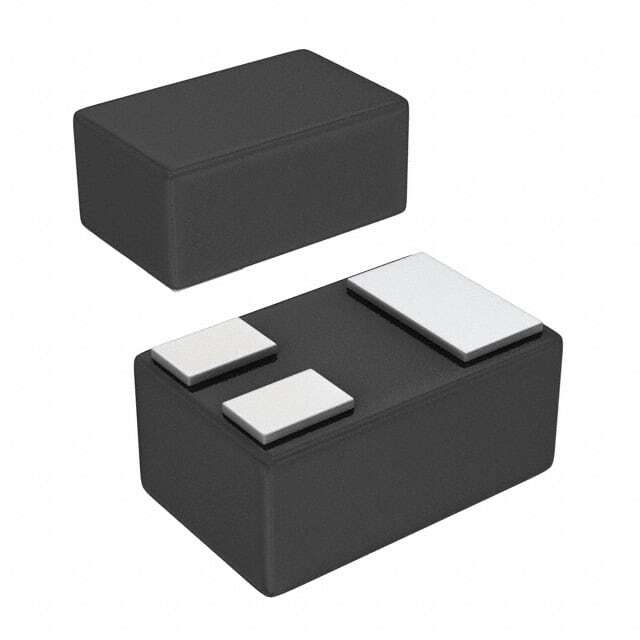

DMN62D1LFB-7B

SKU: 32724

Manufacturer: Diodes Incorporated

Trans MOSFET N-CH 60V 0.407A 3-Pin X1-DFN T/R

Download sample

Request Free Samples

2010 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.21.00.95
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	60
Maximum Gate Source Voltage (V)	±20
Maximum Gate Threshold Voltage (V)	1
Operating Junction Temperature (°C)	-55 to 150
Maximum Continuous Drain Current (A)	0.407
Maximum Gate Source Leakage Current (nA)	2000
Maximum IDSS (uA)	1
Maximum Drain Source Resistance (mOhm)	2000@4V
Typical Gate Charge @ Vgs (nC)	0.45@4.5V
Typical Gate to Drain Charge (nC)	0.08
Typical Gate to Source Charge (nC)	0.08
Typical Input Capacitance @ Vds (pF)	32@25V
Typical Reverse Transfer Capacitance @ Vds (pF)	2.9@25V
Minimum Gate Threshold Voltage (V)	0.6
Typical Output Capacitance (pF)	4.4
Maximum Power Dissipation (mW)	500
Typical Fall Time (ns)	16.3
Typical Rise Time (ns)	3.4
Typical Turn-Off Delay Time (ns)	26.4
Typical Turn-On Delay Time (ns)	3.4
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Maximum Positive Gate Source Voltage (V)	20
Maximum Continuous Drain Current on PCB @ TC=25°C (A)	0.407
Maximum Power Dissipation on PCB @ TC=25°C (W)	0.5
Maximum Pulsed Drain Current @ TC=25°C (A)	1
Maximum Junction Ambient Thermal Resistance on PCB (°C/W)	251
Typical Diode Forward Voltage (V)	0.9
Typical Gate Plateau Voltage (V)	1.8
Maximum Diode Forward Voltage (V)	1.3
Maximum Gate Resistance (Ohm)	250
Original Package	X1-DFN
Pin Count	3
Standard Package Method	DFN
Terminal Form	Surface Mount
Package Height	0.47
Package Length	0.6
Package Width	1
PCB changed	3
