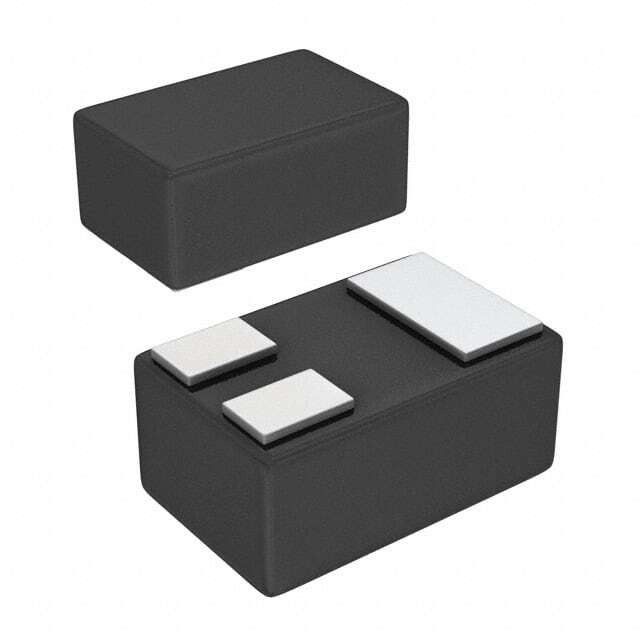

    DMN62D0LFB-7

    SKU: 68139
    Manufacturer: Diodes Incorporated
    Trans MOSFET N-CH 60V 0.32A 3-Pin DFN T/R
    63230 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant
    ECCN (US) EAR99
    Part Status Active
    HTS 8541.29.00.95
    Automotive No
    PPAP No
    Product Category Power MOSFET
    Configuration Single
    Channel Mode Enhancement
    Channel Type N
    Number of Elements per pcs 1
    Maximum Drain Source Voltage (V) 60
    Maximum Gate Source Voltage (V) ±20
    Maximum Gate Threshold Voltage (V) 1
    Maximum Continuous Drain Current (A) 0.32
    Maximum Gate Source Leakage Current (nA) 2000
    Maximum IDSS (uA) 1
    Maximum Drain Source Resistance (mOhm) 2000@4V
    Typical Gate Charge @ Vgs (nC) 0.45@4.5V
    Typical Input Capacitance @ Vds (pF) 32@25V
    Maximum Power Dissipation (mW) 500
    Typical Fall Time (ns) 16.3
    Typical Rise Time (ns) 3.4
    Typical Turn-Off Delay Time (ns) 26.4
    Typical Turn-On Delay Time (ns) 3.4
    Operating Temperature-Min -55
    Operating Temperature-Max 150
    Packing Method Tape and Reel
    Original Package DFN
    Pin Count 3
    Standard Package Method DFN
    Terminal Form Surface Mount
    Package Height 0.47
    Package Length 1
    Package Width 0.6
    PCB changed 3
