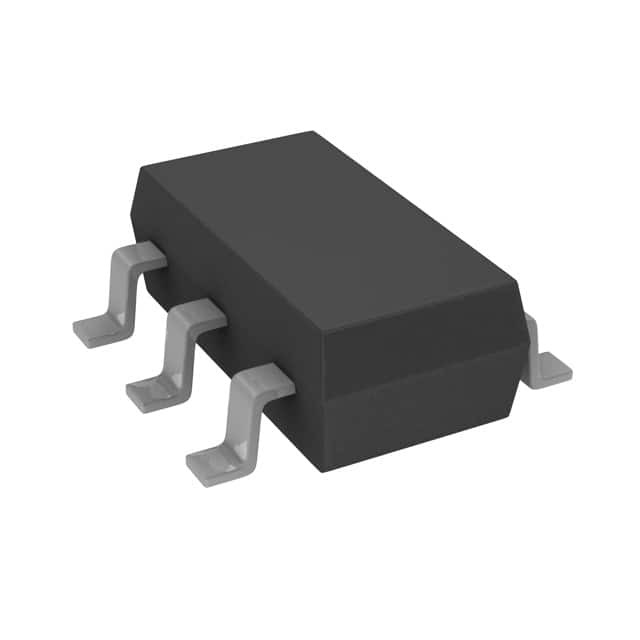

DMN61D8LVT-7

SKU: 131825

Manufacturer: Diodes Incorporated

Trans MOSFET N-CH 60V 0.63A Automotive 6-Pin TSOT-26 T/R

2160 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
Automotive	No
PPAP	No
Product Category	Small Signal
Configuration	Dual
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	2
Maximum Drain Source Voltage (V)	60
Maximum Gate Source Voltage (V)	±12
Maximum Gate Threshold Voltage (V)	2
Maximum Continuous Drain Current (A)	0.63
Maximum Gate Source Leakage Current (nA)	90000
Maximum IDSS (uA)	50
Maximum Drain Source Resistance (mOhm)	1800@5V
Typical Gate Charge @ Vgs (nC)	0.74@5V
Typical Input Capacitance @ Vds (pF)	12.9@12V
Maximum Power Dissipation (mW)	1090
Typical Fall Time (ns)	440
Typical Rise Time (ns)	301
Typical Turn-Off Delay Time (ns)	582
Typical Turn-On Delay Time (ns)	131
Operating Temperature-Min	-55
Operating Temperature-Max	150
Supplier Temperature Grade	Automotive
Packing Method	Tape and Reel
Original Package	TSOT-26
Pin Count	6
Standard Package Method	SOT
Terminal Form	Surface Mount
Package Height	0.9(Max)
Package Length	2.9
Package Width	1.6
PCB changed	6
