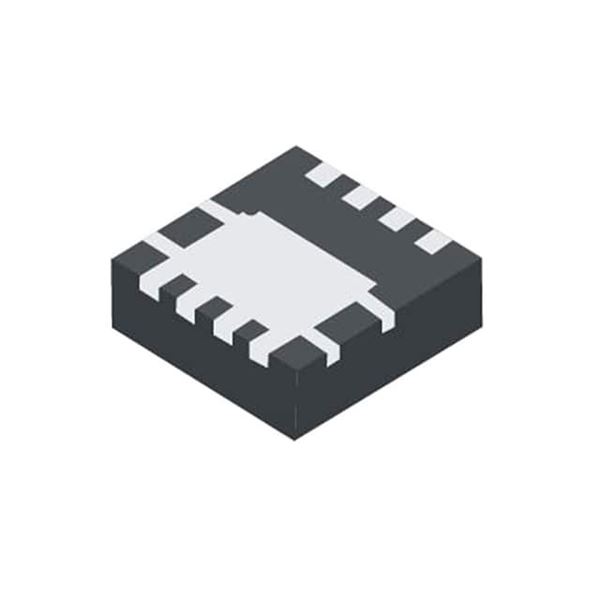

DMN6013LFGQ-13

SKU: 138937

Manufacturer: Diodes Incorporated

Trans MOSFET N-CH 60V 10.3A Automotive 8-Pin PowerDI EP T/R

2650 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
HTS	8541.29.00.95
Automotive	Yes
PPAP	Yes
Product Category	Power MOSFET
Configuration	Single Quad Drain Triple Source
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	60
Maximum Gate Source Voltage (V)	±20
Maximum Continuous Drain Current (A)	10.3
Maximum Drain Source Resistance (mOhm)	13@10V
Typical Gate Charge @ Vgs (nC)	26.6@4.5V
Typical Gate Charge @ 10V (nC)	55.4
Typical Input Capacitance @ Vds (pF)	2577@30V
Maximum Power Dissipation (mW)	40000
Typical Fall Time (ns)	11.7
Typical Rise Time (ns)	9.9
Typical Turn-Off Delay Time (ns)	27.6
Typical Turn-On Delay Time (ns)	6.2
Operating Temperature-Min	-55
Operating Temperature-Max	150
Supplier Temperature Grade	Automotive
Packing Method	Tape and Reel
Original Package	PowerDI EP
Pin Count	8
Terminal Form	Surface Mount
Package Height	0.78
Package Length	3.3
Package Width	3.3
PCB changed	8
