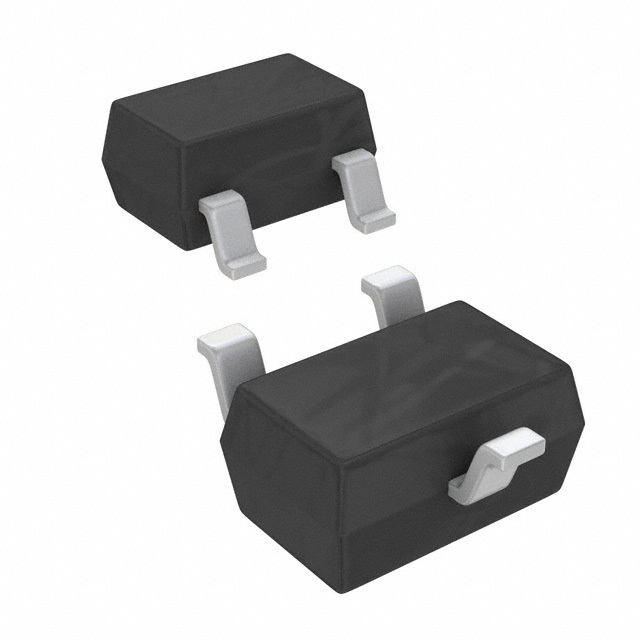

DMN53D0LW-7

SKU: 61126

Manufacturer: Diodes Incorporated

Trans MOSFET N-CH 50V 0.36A 3-Pin SOT-323 T/R

91360 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
Automotive	No
PPAP	No
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	50
Maximum Gate Source Voltage (V)	±20
Maximum Gate Threshold Voltage (V)	1.5
Maximum Continuous Drain Current (A)	0.36
Maximum Gate Source Leakage Current (nA)	10000
Maximum IDSS (uA)	1
Maximum Drain Source Resistance (mOhm)	2000@10V
Typical Gate Charge @ Vgs (nC)	0.6@4.5V
Typical Gate Charge @ 10V (nC)	1.2
Typical Input Capacitance @ Vds (pF)	45.8@25V
Maximum Power Dissipation (mW)	420
Typical Fall Time (ns)	11
Typical Rise Time (ns)	2.5
Typical Turn-Off Delay Time (ns)	18.9
Typical Turn-On Delay Time (ns)	2.7
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	SOT-323
Pin Count	3
Standard Package Method	SOT
Terminal Form	Surface Mount
Package Height	0.95
Package Length	2.15
Package Width	1.3
PCB changed	3
