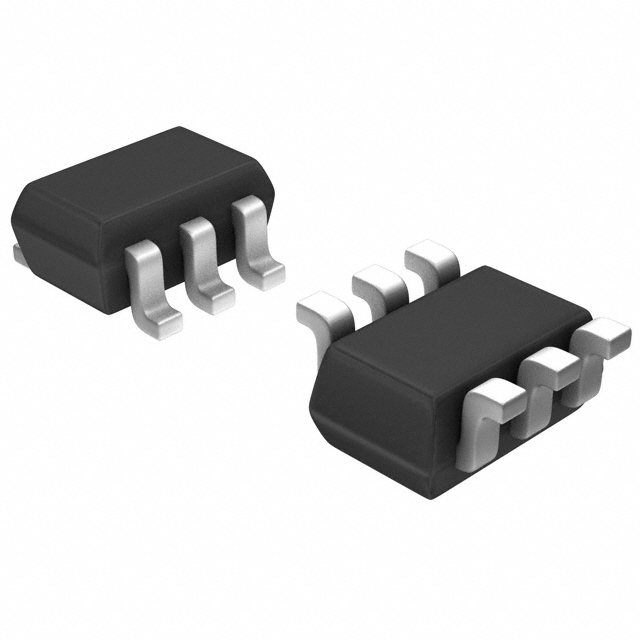

DMN3190LDW-7

SKU: 103383

Manufacturer: Diodes Incorporated

Trans MOSFET N-CH 30V 1A 6-Pin SOT-363 T/R

115940 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Dual
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	2
Maximum Drain Source Voltage (V)	30
Maximum Gate Source Voltage (V)	±20
Maximum Gate Threshold Voltage (V)	2.8
Operating Junction Temperature (°C)	-55 to 150
Maximum Continuous Drain Current (A)	1
Maximum Gate Source Leakage Current (nA)	10000
Maximum IDSS (uA)	1
Maximum Drain Source Resistance (mOhm)	190@10V
Typical Gate Charge @ Vgs (nC)	2@10V
Typical Gate Charge @ 10V (nC)	2
Typical Gate to Drain Charge (nC)	0.3
Typical Gate to Source Charge (nC)	0.3
Typical Input Capacitance @ Vds (pF)	87@20V
Typical Reverse Transfer Capacitance @ Vds (pF)	12@20V
Minimum Gate Threshold Voltage (V)	1.5
Typical Output Capacitance (pF)	17
Maximum Power Dissipation (mW)	400
Typical Fall Time (ns)	15.6
Typical Rise Time (ns)	8.9
Typical Turn-Off Delay Time (ns)	30.3
Typical Turn-On Delay Time (ns)	4.5
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Maximum Positive Gate Source Voltage (V)	20
Maximum Continuous Drain Current on PCB @ TC=25°C (A)	1
Maximum Power Dissipation on PCB @ TC=25°C (W)	0.4
Maximum Pulsed Drain Current @ TC=25°C (A)	2
Maximum Junction Ambient Thermal Resistance on PCB (°C/W)	320
Typical Gate Plateau Voltage (V)	2.9
Maximum Diode Forward Voltage (V)	1.2
Original Package	SOT-363
Pin Count	6
Standard Package Method	SOT
Terminal Form	Surface Mount
Package Height	0.95
Package Length	2.15
Package Width	1.3
PCB changed	6
