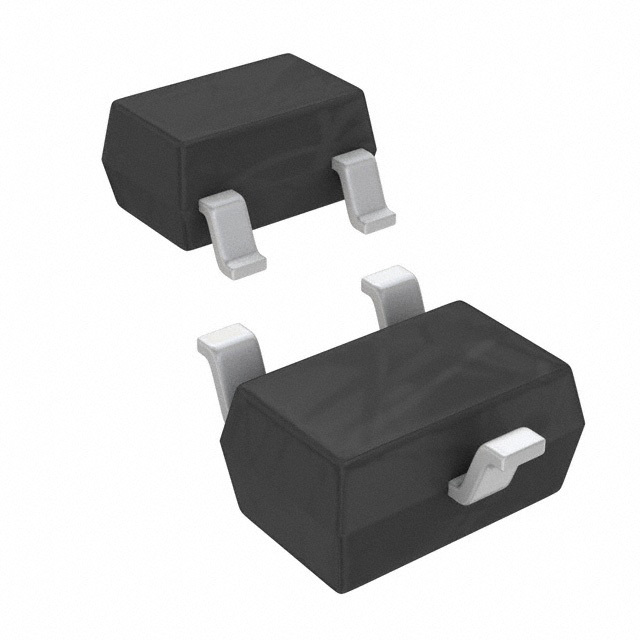

DMN3150LW-7

SKU: 89209

Manufacturer: Diodes Incorporated

Trans MOSFET N-CH 28V 1.6A 3-Pin SOT-323 T/R

84140 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
Automotive	No
PPAP	No
Product Category	Small Signal
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	28
Maximum Gate Source Voltage (V)	±12
Maximum Gate Threshold Voltage (V)	1.4
Maximum Continuous Drain Current (A)	1.6
Maximum Gate Source Leakage Current (nA)	800
Maximum IDSS (uA)	0.8
Maximum Drain Source Resistance (mOhm)	88@4.5V
Typical Input Capacitance @ Vds (pF)	305@5V
Maximum Power Dissipation (mW)	350
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	SOT-323
Pin Count	3
Standard Package Method	SOT
Terminal Form	Surface Mount
Package Height	0.95
Package Length	2.15
Package Width	1.3
PCB changed	3
