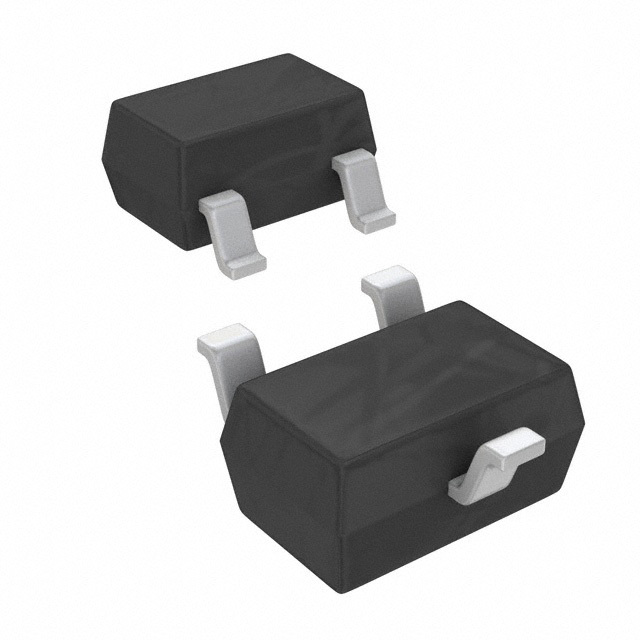

DMN3065LW-7

SKU: 54113

Manufacturer: Diodes Incorporated

Trans MOSFET N-CH 30V 4A 3-Pin SOT-323 T/R

7900 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
Automotive	No
PPAP	No
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	30
Maximum Gate Source Voltage (V)	±12
Maximum Gate Threshold Voltage (V)	1.5
Maximum Continuous Drain Current (A)	4
Maximum Gate Source Leakage Current (nA)	100
Maximum IDSS (uA)	1
Maximum Drain Source Resistance (mOhm)	52@10V
Typical Gate Charge @ Vgs (nC)	11.7@10V
Typical Gate Charge @ 10V (nC)	11.7
Typical Input Capacitance @ Vds (pF)	465@15V
Maximum Power Dissipation (mW)	770
Typical Fall Time (ns)	2
Typical Rise Time (ns)	1.6
Typical Turn-Off Delay Time (ns)	10.3
Typical Turn-On Delay Time (ns)	1.9
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	SOT-323
Pin Count	3
Standard Package Method	SOT-323
Terminal Form	Surface Mount
Package Height	0.95
Package Length	2.15
Package Width	1.3
PCB changed	3
