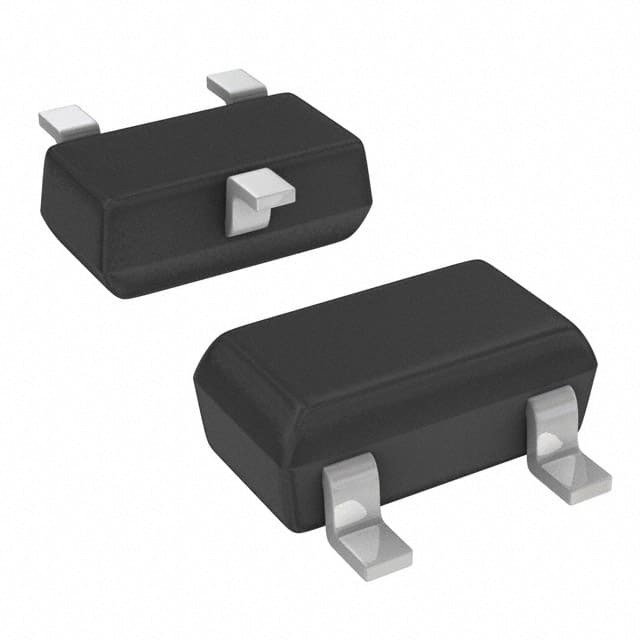

DMN3033LSN-7

SKU: 138934

Manufacturer: Diodes Incorporated

Trans MOSFET N-CH 30V 6A 3-Pin SC-59 T/R

16560 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	30
Maximum Gate Source Voltage (V)	±20
Maximum Continuous Drain Current (A)	6
Maximum Drain Source Resistance (mOhm)	30@10V
Typical Gate Charge @ Vgs (nC)	10.5@5V
Typical Input Capacitance @ Vds (pF)	755@10V
Maximum Power Dissipation (mW)	1400
Typical Fall Time (ns)	30
Typical Rise Time (ns)	7
Typical Turn-Off Delay Time (ns)	63
Typical Turn-On Delay Time (ns)	11
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	SC-59
Pin Count	3
Standard Package Method	SC
Terminal Form	Surface Mount
Package Height	1.1
Package Length	3
Package Width	1.6
PCB changed	3
