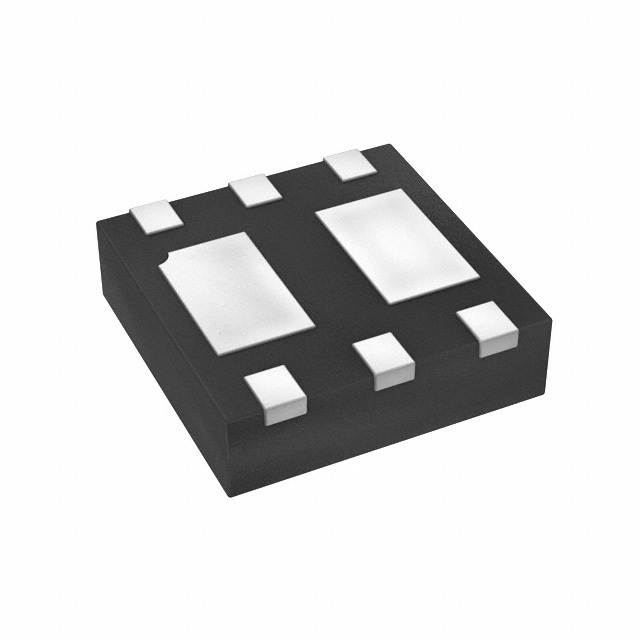

DMN3032LFDB-7

SKU: 89207

Manufacturer: Diodes Incorporated

Trans MOSFET N-CH 30V 6.2A 6-Pin UDFN EP T/R

2210 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Dual
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	2
Maximum Drain Source Voltage (V)	30
Maximum Gate Source Voltage (V)	±20
Maximum Continuous Drain Current (A)	6.2
Maximum Drain Source Resistance (mOhm)	30@10V
Typical Gate Charge @ Vgs (nC)	10.6@10V
Typical Gate Charge @ 10V (nC)	10.6
Typical Input Capacitance @ Vds (pF)	500@15V
Maximum Power Dissipation (mW)	1700
Typical Fall Time (ns)	2
Typical Rise Time (ns)	2.6
Typical Turn-Off Delay Time (ns)	9.7
Typical Turn-On Delay Time (ns)	2.2
Operating Temperature-Min	-55
Operating Temperature-Max	150
Supplier Temperature Grade	Automotive
Packing Method	Tape and Reel
Original Package	UDFN EP
Pin Count	6
Terminal Form	Surface Mount
Package Height	0.56
Package Length	2
Package Width	2
