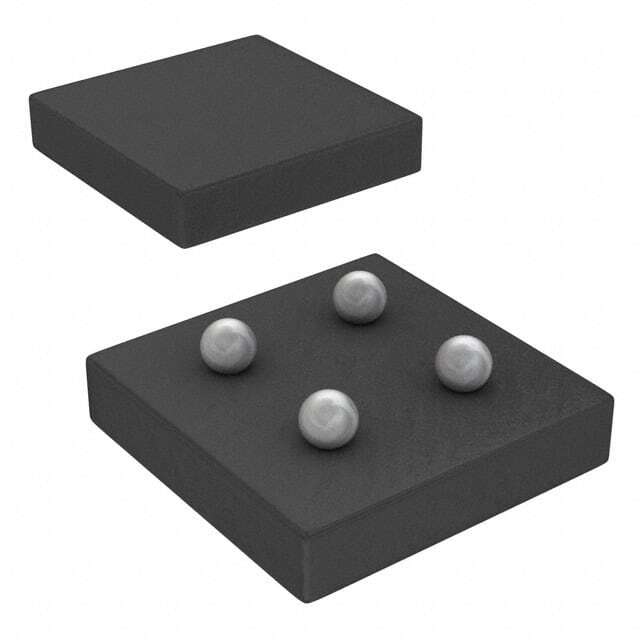

DMN2036UCB4-7

SKU: 61114

Manufacturer: Diodes Incorporated

Trans MOSFET N-CH 24V 1.6A 4-Pin X2-WLB T/R

1050 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Dual Common Drain
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	2
Maximum Drain Source Voltage (V)	24
Maximum Gate Source Voltage (V)	±12
Maximum Continuous Drain Current (A)	1.6
Maximum Drain Source Resistance (mOhm)	45@4.5V
Typical Gate Charge @ Vgs (nC)	12.6@4.5V
Typical Input Capacitance @ Vds (pF)	12600@10V
Maximum Power Dissipation (mW)	1450
Typical Fall Time (ns)	572
Typical Rise Time (ns)	278
Typical Turn-Off Delay Time (ns)	738
Typical Turn-On Delay Time (ns)	183
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	X2-WLB
Pin Count	4
Terminal Form	Surface Mount
Package Height	0.22
Package Length	1.62
Package Width	1.62
