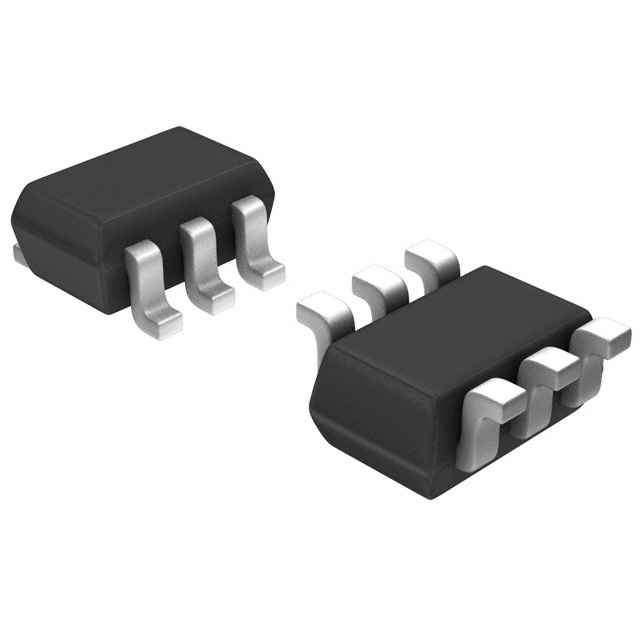

DMN2004DWK-7

SKU: 96294

Manufacturer: Diodes Incorporated

Trans MOSFET N-CH 20V 0.54A 6-Pin SOT-363 T/R

114850 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
Automotive	No
PPAP	No
Product Category	Small Signal
Configuration	Dual
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	2
Maximum Drain Source Voltage (V)	20
Maximum Gate Source Voltage (V)	±8
Maximum Gate Threshold Voltage (V)	1
Operating Junction Temperature (°C)	-65 to 150
Maximum Continuous Drain Current (A)	0.54
Maximum Gate Source Leakage Current (nA)	1000
Maximum IDSS (uA)	1
Maximum Drain Source Resistance (mOhm)	550@4.5V
Typical Gate Charge @ Vgs (nC)	0.53@4.5V
Typical Gate to Drain Charge (nC)	0.07
Typical Gate to Source Charge (nC)	0.08
Typical Input Capacitance @ Vds (pF)	36@16V
Typical Reverse Transfer Capacitance @ Vds (pF)	4.2@16V
Minimum Gate Threshold Voltage (V)	0.5
Typical Output Capacitance (pF)	5.7
Maximum Power Dissipation (mW)	200
Typical Fall Time (ns)	10.5
Typical Rise Time (ns)	7.3
Typical Turn-Off Delay Time (ns)	13.8
Typical Turn-On Delay Time (ns)	4.1
Operating Temperature-Min	-65
Operating Temperature-Max	150
Packing Method	Tape and Reel
Maximum Positive Gate Source Voltage (V)	8
Maximum Continuous Drain Current on PCB @ TC=25°C (A)	0.54
Maximum Power Dissipation on PCB @ TC=25°C (W)	0.2
Maximum Pulsed Drain Current @ TC=25°C (A)	1.5
Typical Gate Plateau Voltage (V)	1.4
Maximum Diode Forward Voltage (V)	1.4
Original Package	SOT-363
Pin Count	6
Standard Package Method	SOT
Terminal Form	Surface Mount
Package Height	0.95
Package Length	2.15
Package Width	1.3
PCB changed	6
