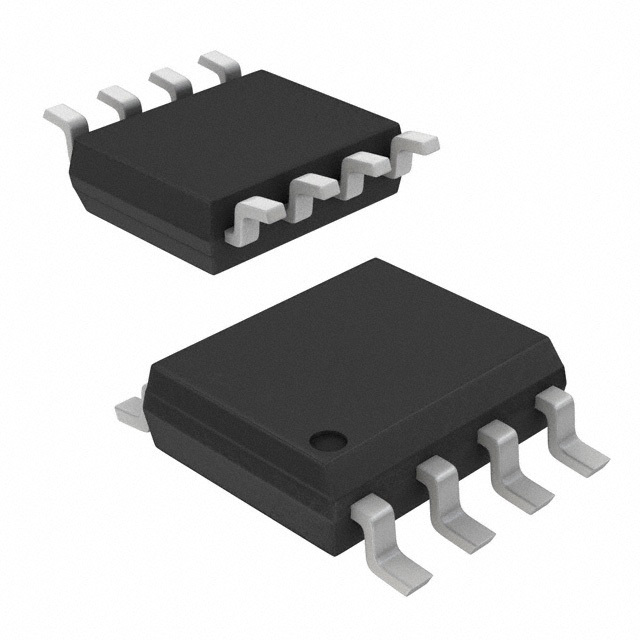

DGD1503S8-13

SKU: 96278

Manufacturer: Diodes Incorporated

Driver 2-OUT High and Low Side Half Brdg Inv/Non-Inv 8-Pin SO T/R

1370 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	NRND
HTS	8542.39.00.01
Automotive	No
PPAP	No
Driver Type	High and Low Side
Driver Configuration	Inverting
Bridge Type	Half Bridge
Number of Drivers	2
High and Low Sides Dependency	Synchronous
Type	MOSFET
Number of Outputs	2
Maximum Rise Time (ns)	170
Maximum Fall Time (ns)	90
Maximum Propagation Delay Time (ns)	820
Input Logic Compatibility	CMOS
Operating Supply Voltage-Min (V)	10
Operating Supply Voltage-Max (V)	20
Typical Input Low Threshold Voltage (V)	0.8(Max)
Typical Input High Threshold Voltage (V)	2.5(Min)
Maximum Power Dissipation (mW)	625
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Extended
Maximum Turn-On Delay Time (ns)	60
Maximum Turn-Off Delay Time (ns)	60
Latch-Up Proof	No
Packing Method	Tape and Reel
Original Package	SO
Pin Count	8
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.45
Package Length	4.9
Package Width	3.9
PCB changed	8
