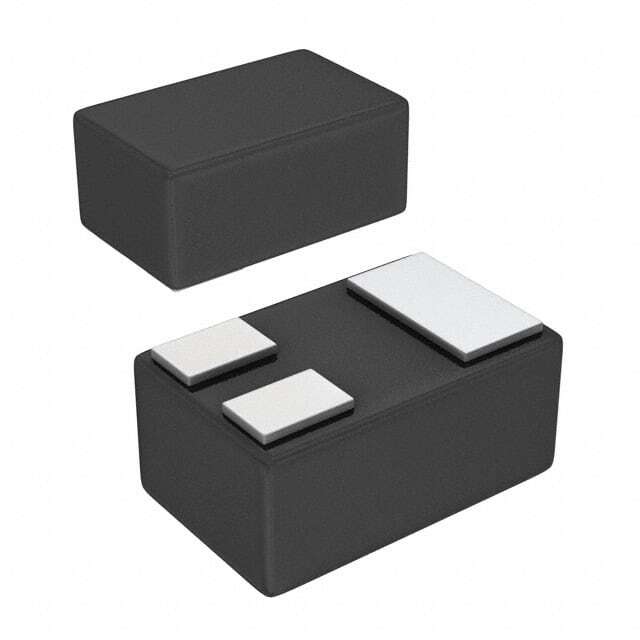

DDTC114YLP-7

SKU: 89147

Manufacturer: Diodes Incorporated

Trans Digital BJT NPN 50V 100mA 250mW 3-Pin DFN T/R

2520 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.21.00.75
Automotive	No
PPAP	No
Type	NPN
Configuration	Single
Collector-Emitter Voltage-Max (V)	50
Maximum Base Emitter Saturation Voltage (V)	0.98@1mA@10mA
Maximum Continuous DC Collector Current (mA)	100
Minimum DC Current Gain	50@1mA@5V
Typical Current Gain Bandwidth (MHz)	250
Typical Input Resistor (kOhm)	10
Typical Resistor Ratio	0.21
Maximum Collector-Emitter Saturation Voltage (V)	0.15@1mA@10mA
Maximum Power Dissipation (mW)	250
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	DFN
Pin Count	3
Standard Package Method	DFN
Terminal Form	Surface Mount
Package Height	0.47
Package Length	1
Package Width	0.6
PCB changed	3
