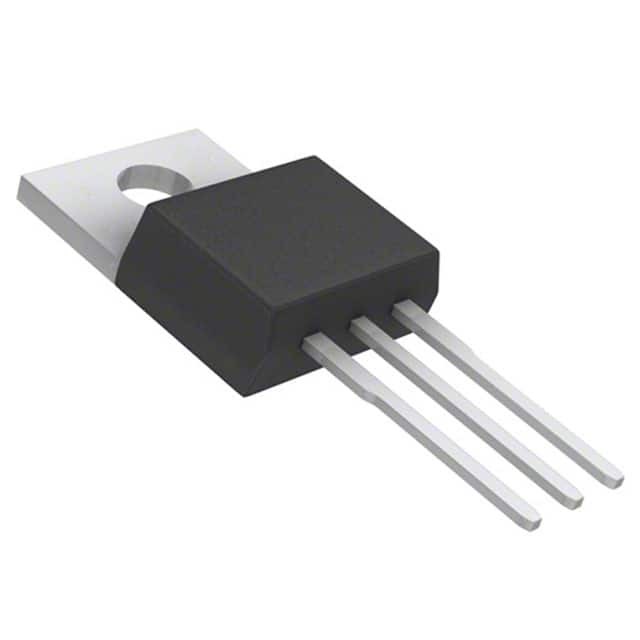

AZ2940T-5.0E1

SKU: 81590

Manufacturer: Diodes Incorporated

LDO Regulator Pos 5V 1A 3-Pin(3+Tab) TO-220 Tube

10 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Accuracy (%)	±1
Output Type	Fixed
Output Voltage (V)	5
Maximum Output Current (A)	1
Minimum Input Voltage (V)	2.5
Maximum Input Voltage (V)	13.2
Maximum Dropout Voltage @ Current (V)	0.55@1A
Line Regulation	50mV
Load Regulation	75mV
Junction to Ambient	60°C/W
Junction to Case	4.4°C/W(Typ)
Special Features	Thermal Shutdown Protection
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tube
Original Package	TO-220
Pin Count	3
Standard Package Method	TO-220
Terminal Form	Through Hole
Package Height	9.52(Max)
Package Length	10.66(Max)
Package Width	4.82(Max)
PCB changed	3
Tab	Tab
