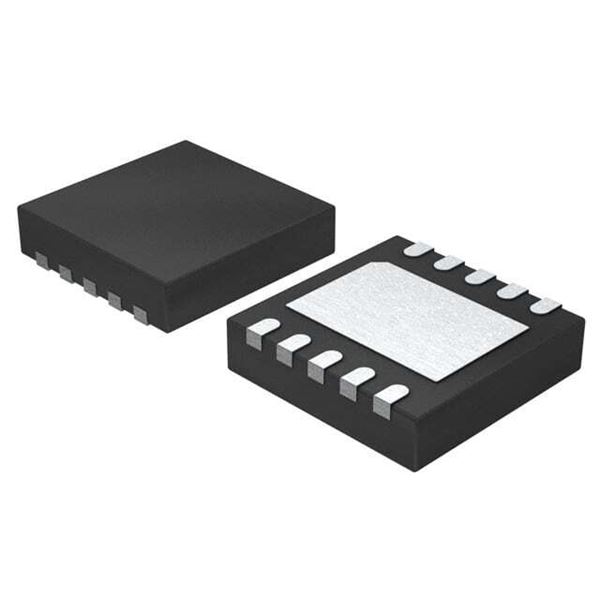

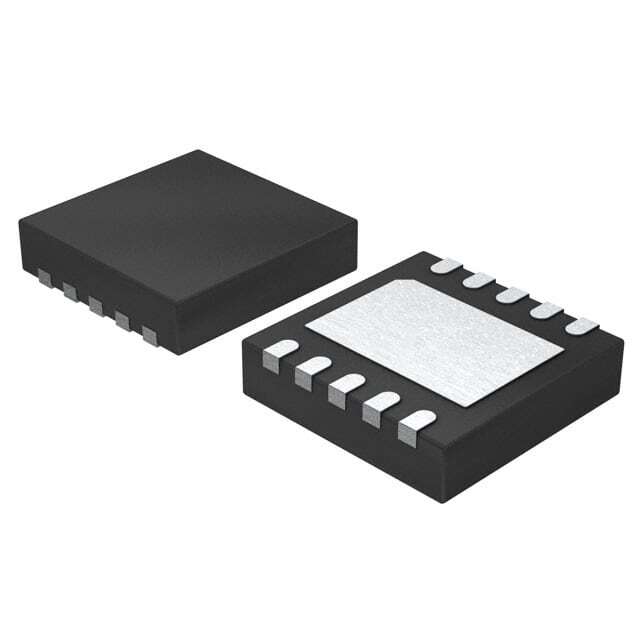

AP65355FN-7

SKU: 138146

Manufacturer: Diodes Incorporated

Conv DC-DC 4.5V to 18V Synchronous Step Down Single-Out 0.76V to 6V 3A 10-Pin UDFN EP T/R

2250 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Synchronous Step Down
Output Type	Adjustable
Switching Frequency (kHz)	650
Switching Regulator	Yes
Number of Outputs	1
Output Voltage (V)	0.76 to 6
Maximum Output Current (A)	3
Minimum Input Voltage (V)	4.5
Maximum Input Voltage (V)	18
Operating Supply Voltage (V)	4.5 to 18
Typical Switch Current (A)	4.5
Typical Quiescent Current (uA)	600
Line Regulation	20mV
Load Regulation	100mV
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	UDFN EP
Pin Count	10
Standard Package Method	DFN
Terminal Form	Surface Mount
Package Height	0.58
Package Length	3
Package Width	3
PCB changed	10
