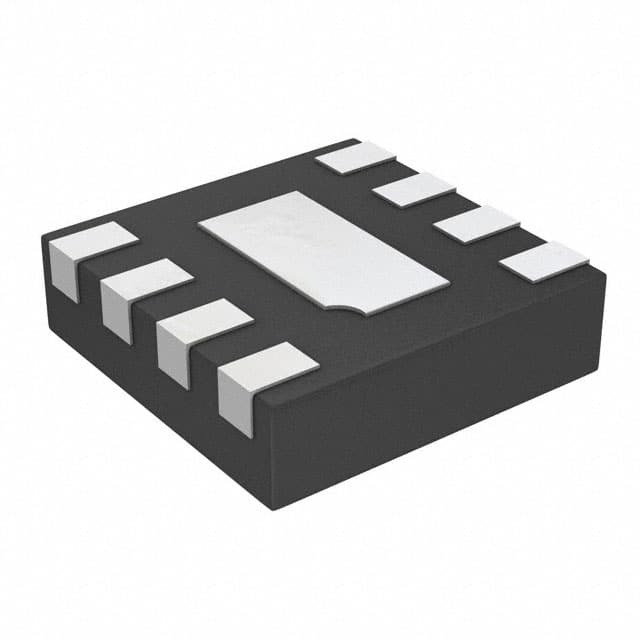

AP22850SH8-7

SKU: 102620

Manufacturer: Diodes Incorporated

Power Switch Hi Side 1-OUT 8A 0.023Ohm 8-Pin DFN EP T/R

7420 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	High Side
Number of Outputs	1
Minimum Input Voltage (V)	4.5
Maximum Input Voltage (V)	11
Output Voltage Range (V)	12(Max)
Minimum Output Current (A)	8(Max)
Switch On Resistance (Ohm)	0.023
Maximum Power Dissipation (mW)	1800
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	DFN EP
Pin Count	8
Standard Package Method	DFN
Terminal Form	Surface Mount
Package Height	0.78
Package Length	2
Package Width	2
PCB changed	8
