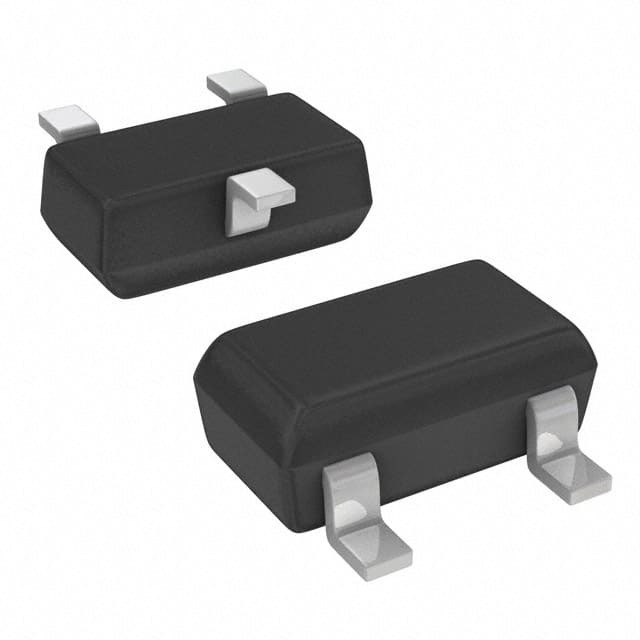

AH3382-W-7

SKU: 138070

Manufacturer: Diodes Incorporated

Hall Effect Sensor 60mA Unipolar 3.3V/5V/9V/12V/15V/18V/24V Automotive 3-Pin SC-59 T/R

3010 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Magnetic Type	Unipolar
Module/IC Classification	IC
Minimum Magnetic Sensor Release Point (Gs)	20
Typical Magnetic Sensor Hysteresis (Gs)	20
Maximum Magnetic Sensor Operating Point (Gs)	70
Typical Output Fall Time (us)	0.1
Maximum Output Current (mA)	60
Operating Supply Voltage-Min (V)	3
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	28
Maximum Supply Current (uA)	4000
Maximum Power Dissipation (mW)	230
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	SC-59
Pin Count	3
Terminal Form	Surface Mount
Package Height	1.1
Package Length	3
Package Width	1.6
PCB changed	3
