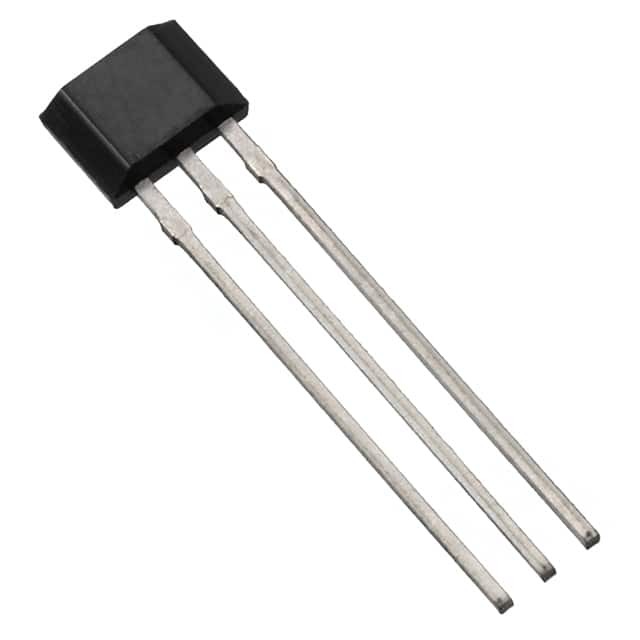

AH3382-P-A

SKU: 60360

Manufacturer: Diodes Incorporated

Hall Effect Sensor 60mA Unipolar 3.3V/5V/9V/12V/15V/18V/24V 3-Pin SIP Ammo

2900 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Magnetic Type	Unipolar
Module/IC Classification	IC
Minimum Magnetic Sensor Release Point (Gs)	20
Typical Magnetic Sensor Hysteresis (Gs)	20
Maximum Magnetic Sensor Operating Point (Gs)	70
Typical Output Fall Time (us)	0.1
Maximum Output Current (mA)	60
Operating Supply Voltage-Min (V)	3
Typical Operating Supply Voltage (V)	15
Operating Supply Voltage-Max (V)	28
Maximum Supply Current (uA)	4000
Maximum Power Dissipation (mW)	550
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Ammo
Original Package	SIP
Pin Count	3
Standard Package Method	SIP
Terminal Form	Through Hole
Package Height	3.2(Max)
Package Length	4.3(Max)
Package Width	2.44(Max)
PCB changed	3
