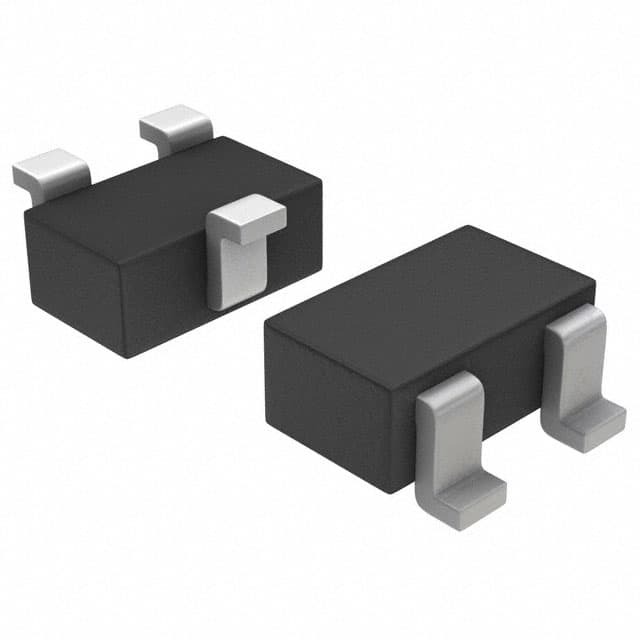

2N7002KW

SKU: 7423

Manufacturer: Diodes Incorporated

Trans MOSFET N-CH 60V 0.38A 3-Pin SOT-323

6390 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Supplier Unconfirmed
ECCN (US)	EAR99
Part Status	Unconfirmed
Automotive	No
PPAP	No
Product Category	Small Signal
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	60
Maximum Gate Source Voltage (V)	±20
Maximum Gate Threshold Voltage (V)	2.5
Maximum Continuous Drain Current (A)	0.38
Maximum Gate Source Leakage Current (nA)	1000
Maximum IDSS (uA)	1
Maximum Drain Source Resistance (mOhm)	2300@10V
Typical Gate Charge @ Vgs (nC)	0.71@4.5V
Typical Input Capacitance @ Vds (pF)	25@25V
Maximum Power Dissipation (mW)	420
Typical Fall Time (ns)	22
Typical Rise Time (ns)	22
Typical Turn-Off Delay Time (ns)	3
Typical Turn-On Delay Time (ns)	1.5
Operating Temperature-Min	-55
Operating Temperature-Max	150
Original Package	SOT-323
Pin Count	3
Standard Package Method	SOT-323
Terminal Form	Surface Mount
Package Height	1(Max)
Package Length	2.2(Max)
Package Width	1.35(Max)
PCB changed	3
